(88.100.35[10]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER, VALVE

Запчасти Case 580N (88.100.35[10]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER, VALVE (88) - ACCESSORIES

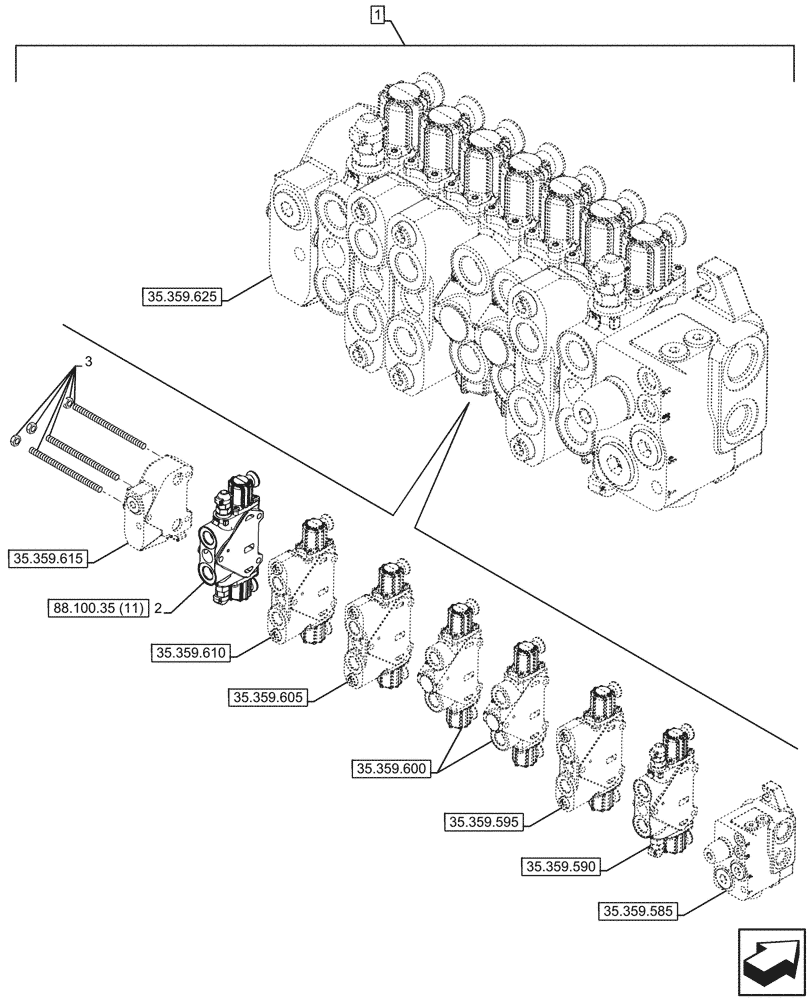

Схема запчастей Case 580N - (88.100.35[10]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, STANDARD DIPPER, VALVE (88) - ACCESSORIES
35.359.595
3
1
2
35.359.605
35.359.615
35.359.585
35.359.610
35.359.590
35.359.625
88.100.35 (11)
35.359.600
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47670289

SERVICE KIT

Dual Auxiliary, Pilot Control, Standard Dipper, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84278691

HYD VALVE SECTION

ASSY, BI-DIR Pilot Control

1шт.

3

87751102

BOLT

1шт.

Выбрано товаров: 4
