(88.100.030) - VAR - 423082 - TOOL BOX, RETROFIT KIT MECHANICAL

Запчасти Case 580N (88.100.030) - VAR - 423082 - TOOL BOX, RETROFIT KIT MECHANICAL (88) - ACCESSORIES

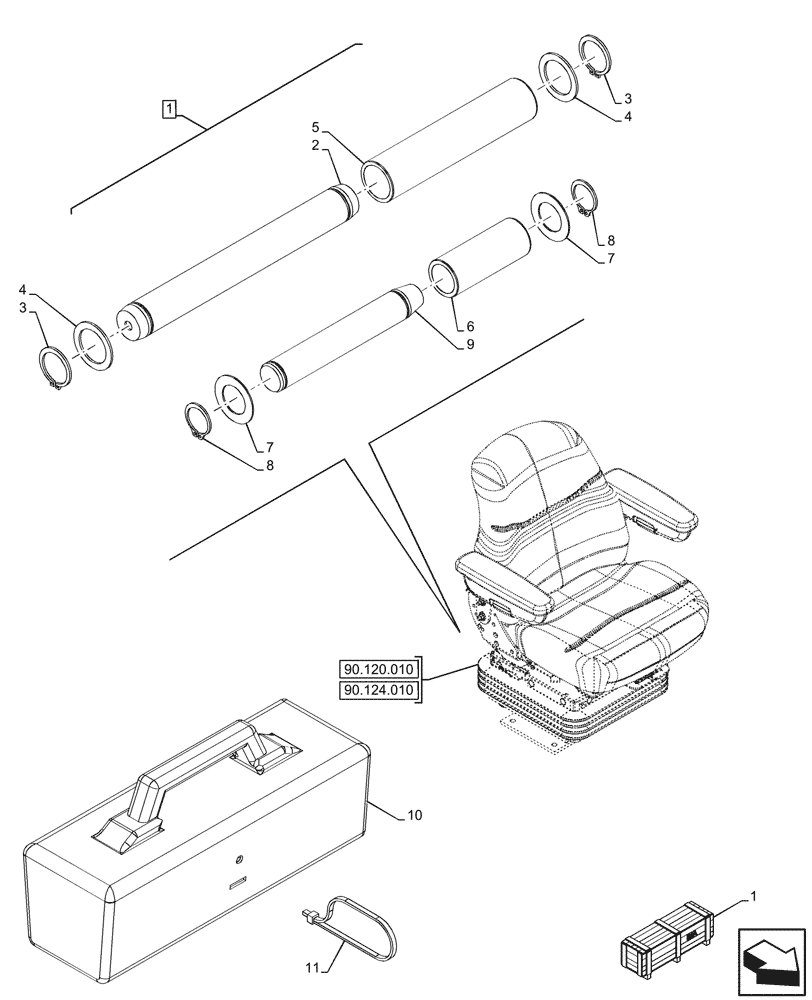

Схема запчастей Case 580N - (88.100.030) - VAR - 423082 - TOOL BOX, RETROFIT KIT MECHANICAL (88) - ACCESSORIES
90.120.010
4
1
3
6
9
10
11
7
8
5
1
7
3
8
4
2
90.124.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84305923

CONSTRUCTION DIA

ASSY, Bucket Retro-Fit Links and Mechanical Coupler. Incl 2 - 9

1шт.

2

84306037

PIN,44.29mm OD x 372.6mm L

1шт.

3

86625149

SNAP RING,#175, Ext

2шт.

4

87613252

WASHER,1.81" ID x 2.5" OD x 0.11" Thk

2шт.

5

84305919

SLEEVE,44.5mm ID x 55mm OD x 246mm L

1шт.

6

84300835

SLEEVE,38.3mm ID x 50mm OD x 125mm L

1шт.

7

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

8

D25279

SNAP RING,M35, Int

2шт.

9

47048659

PIN,1.49" OD x 9.68" L

1шт.

10

87590309

TOOL BOX

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
