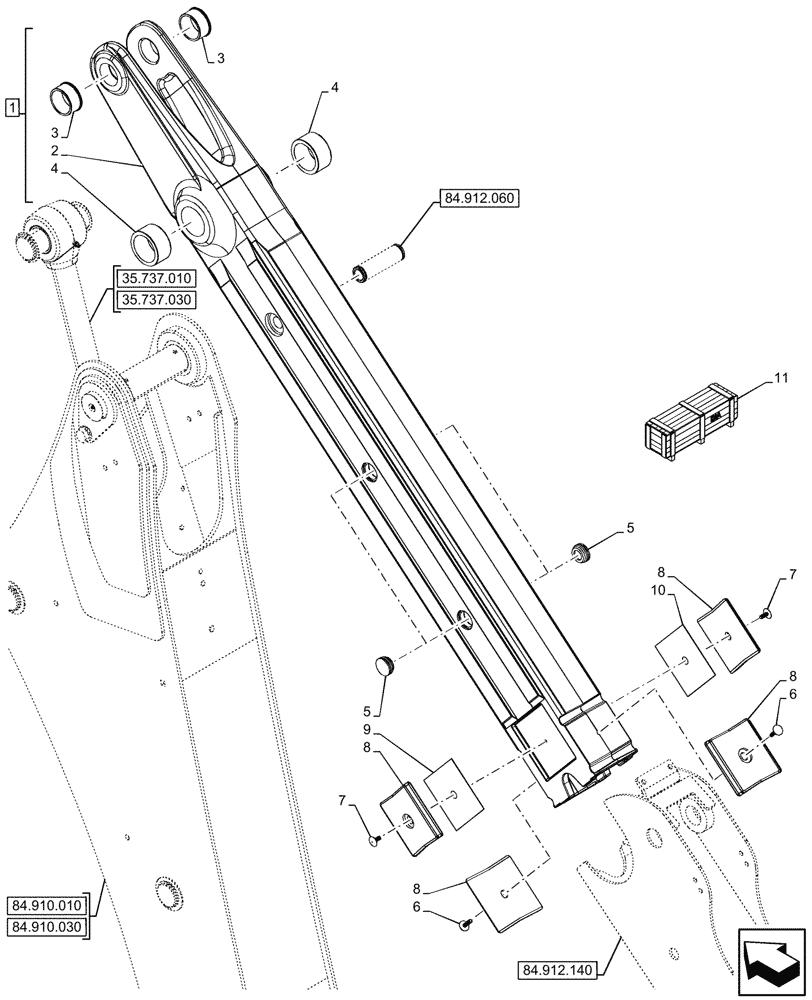

Запчасти Case 580N (84.912.050) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM (84) - BOOMS, DIPPERS & BUCKETS

1

84234832

DIPPER

ASSY, Power Tan, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

84229925

BUSHING,60.16mm ID x 69.98mm OD x 34mm L

2шт.

4

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2шт.

5

D133865

PLUG

4шт.

6

183443A1

PIN,6.6mm OD x 38.5mm L

2шт.

7

183509A1

PIN,8.3mm OD x 22mm L

2шт.

8

451384A1

WEAR PLATE

4шт.

9

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

1шт.

10

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1шт.

11

47945904

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 10

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47945939

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 10

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
