(84.912.040) - VAR - 423075 - STANDARD DIPPER, BACKHOE ARM

Запчасти Case 580N (84.912.040) - VAR - 423075 - STANDARD DIPPER, BACKHOE ARM (84) - BOOMS, DIPPERS & BUCKETS

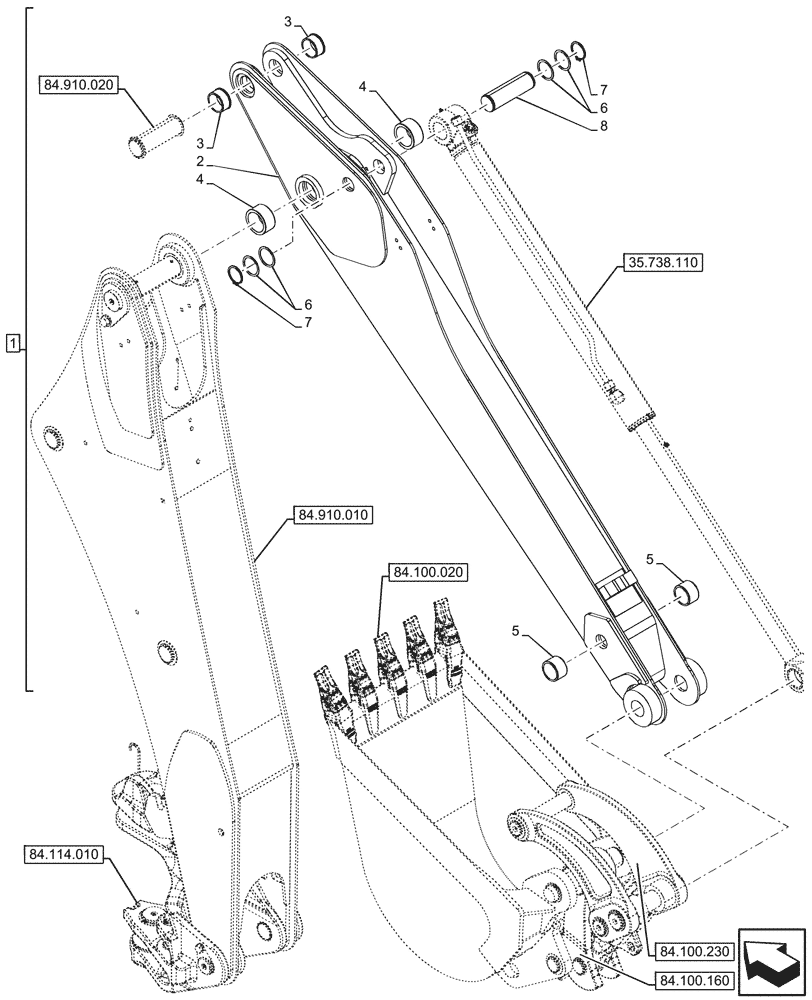

Схема запчастей Case 580N - (84.912.040) - VAR - 423075 - STANDARD DIPPER, BACKHOE ARM (84) - BOOMS, DIPPERS & BUCKETS
84.100.020
5
5
8
7
1
7
6
4
3
3
4
2
6
84.100.230
84.100.160
84.910.020
35.738.110
84.910.010
84.114.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47632826

DIPPER

ASSY, Power Tan, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

84223633

BUSHING,60.19mm ID x 69.98mm OD x 34mm L

2шт.

4

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2шт.

5

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

6

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

7

84224886

RING,60mm ID, Ext

2шт.

8

84217320

PIN,60mm OD x 199mm L

Cylinder to Dipper

1шт.
