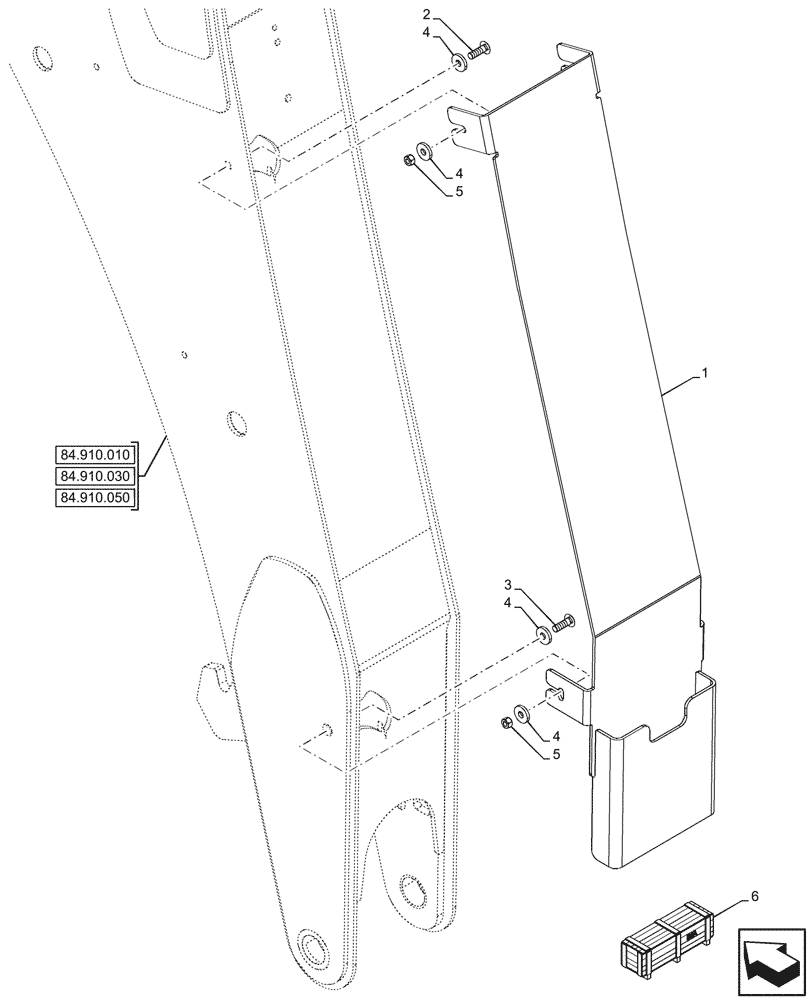

Запчасти Case 580N (84.910.070) - BOOM, GUARD (84) - BOOMS, DIPPERS & BUCKETS

1

84260388

GUARD

Power Tan

1шт.

2

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

3

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

2шт.

4

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

5

829-1412

NUT,M12, Cl 10.9

4шт.

6

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 580SN NRC, 580SN WT NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 580SN NRC, 580SN WT NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 580SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 5

1шт.

Valid for 580N NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Incl

1шт.

Valid for 580SN (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84395141

CONSTRUCTION DIA

Boom Guard, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model only

1шт.

6

84487512

KIT

Uni-Auxiliary, Incl 1 - 5

1шт.

Valid for 580N NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84487895

KIT

Uni-Auxiliary, Incl 1 - 5

1шт.

Valid for 580N NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84544872

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 5

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 5

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
