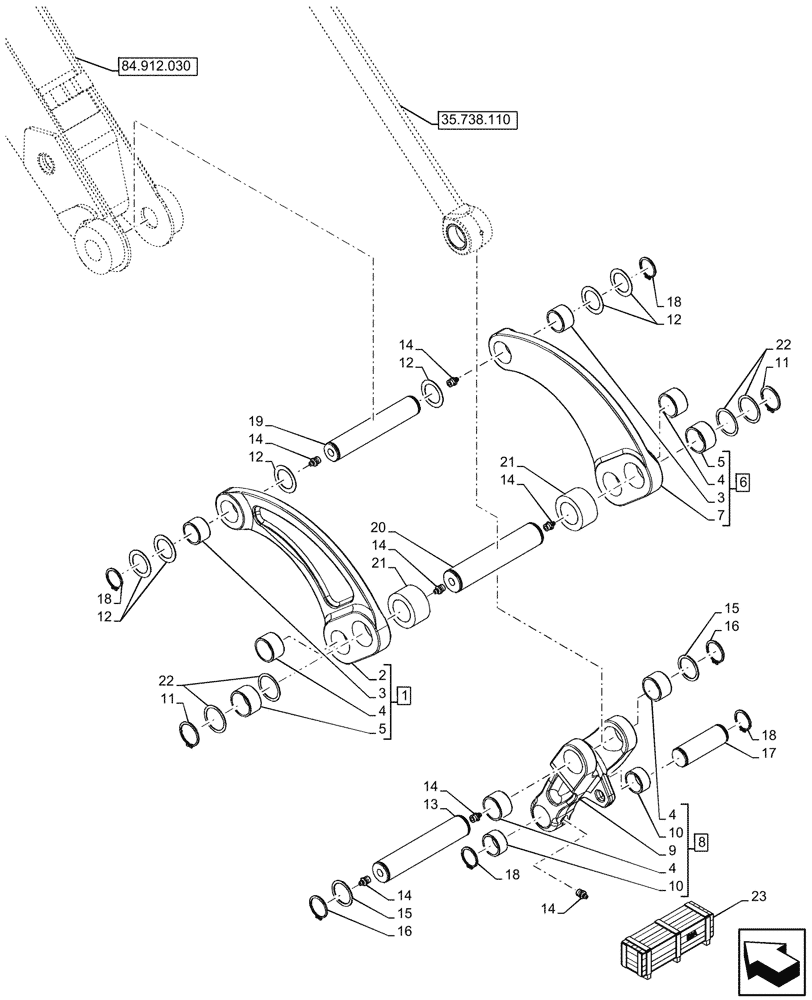

Запчасти Case 580N (84.100.260) - VAR - 442017, 442018 - BACKHOE BUCKET, LINK 14FT (84) - BOOMS, DIPPERS & BUCKETS

1

47946372

LINK

ASSY, Grey, Incl 2, 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

4шт.

5

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

2шт.

6

47946371

LINK

ASSY, Grey, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Link, Incl in 6

1шт.

8

47959642

LINK

ASSY, Grey, Incl 4 (Qty 2), 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Incl in 8

1шт.

10

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

11

84224886

RING,60mm ID, Ext

2шт.

12

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

6шт.

13

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

15

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

16

84233536

RING,55mm ID, Ext

2шт.

17

84223652

PIN,50mm OD x 151mm L

Dump Link to Coupler

1шт.

18

87016943

RING, SNAP,50mm ID , Ext

4шт.

19

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

20

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

21

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

22

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

23

47955841

CONSTRUCTION DIA

Mechanical Coupler Upgrade, Incl 1 - 10, 13 - 17, 21

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models Only, W/ Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

23

47955842

CONSTRUCTION DIA

Mechanical Coupler Upgrade, Incl 1 - 10, 13 - 17, 21

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
