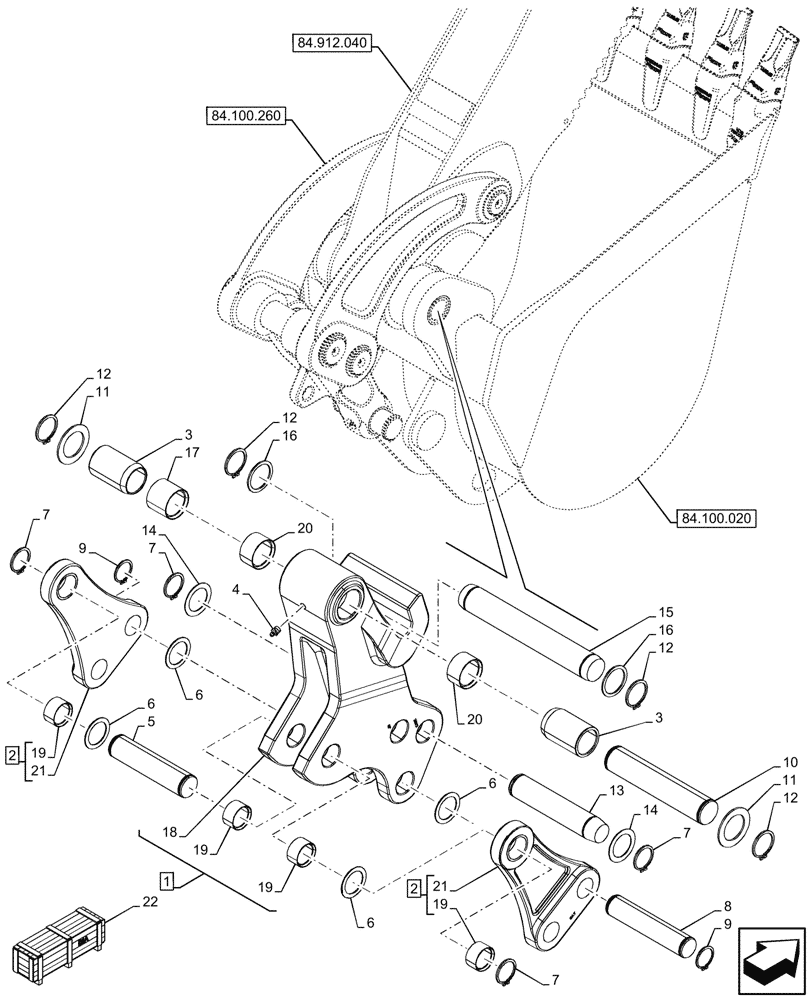

Запчасти Case 580N (84.100.110) - VAR - 745162 - BACKHOE BUCKET, UNIVERSAL, COUPLING, STANDARD DIPPER, LINK (84) - BOOMS, DIPPERS & BUCKETS

1

47957251

LINK

ASSY, Grey, Incl 18, 19 (Qty 2), 20

1шт.

2

47959089

LINK

ASSY, Grey, Incl 19 (Qty 2), 21

2шт.

3

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

47621518

PIN,49.9mm OD x 210mm L

Dump Link to Coupler

1шт.

6

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

4шт.

7

87016943

RING, SNAP,50mm ID , Ext

4шт.

8

47621517

PIN,44.9mm OD x 220mm L

Switch Link to Coupler

1шт.

9

84163822

SNAP RING,45mm ID

2шт.

10

47674613

PIN,54.9mm OD x 276mm L

Coupler to Dipper

1шт.

11

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

2шт.

12

84233536

RING,55mm ID, Ext

4шт.

13

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

14

87613253

WASHER,2.06" ID x 2.94" OD x 0.06" Thk

2шт.

15

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

16

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

17

47816273

BUSHING,60.42mm ID x 67mm OD x 54.5mm L

1шт.

18

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

19

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

4шт.

20

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

21

NSS

NOT SOLD SEPARAT

Link, Incl in 2

2шт.

22

48024054

CONSTRUCTION DIA

Universal Coupler, Backhoe, Incl 1, 2, 4 - 12, 17 - 21

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models Only, W/ Standard Dipper

1шт.
