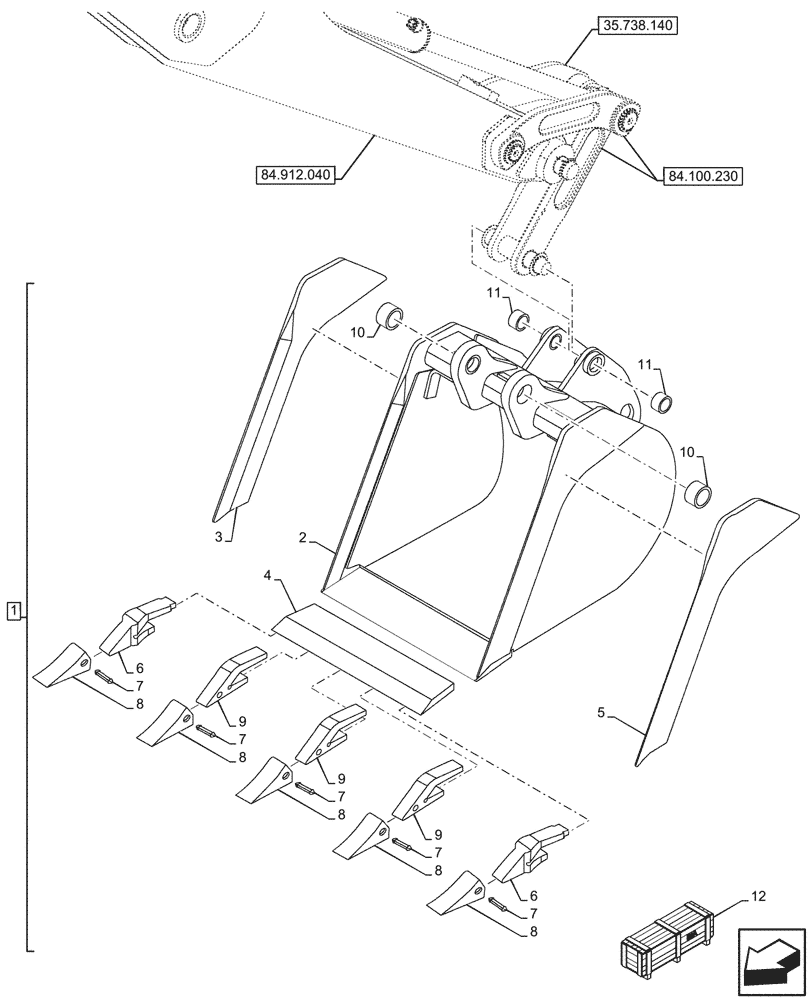

Запчасти Case 580N (84.100.050) - VAR - 423069 - BUCKET, UNIVERSAL 24INCH/610MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416559

BUCKET,24 Inch HD

Grey, ASSY, 24in/610mm, Universal, with 5 Teeth, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

365941A1

CUTTING EDGE

LH

1шт.

4

329554A2

CUTTING EDGE,Welded, 25.4mm W x 603mm L

1шт.

5

365942A1

CUTTING EDGE

RH

1шт.

6

84424392

BUCKET TOOTH SHANK

Outer

2шт.

7

84318739

BUCKET TOOTH KEY

5шт.

8

84318713

BUCKET TOOTH

5шт.

9

84318729

BUCKET TOOTH SHANK

Center

3шт.

10

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

11

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

12

84467274

BUCKET

Bucket 24 Inch Universal, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
