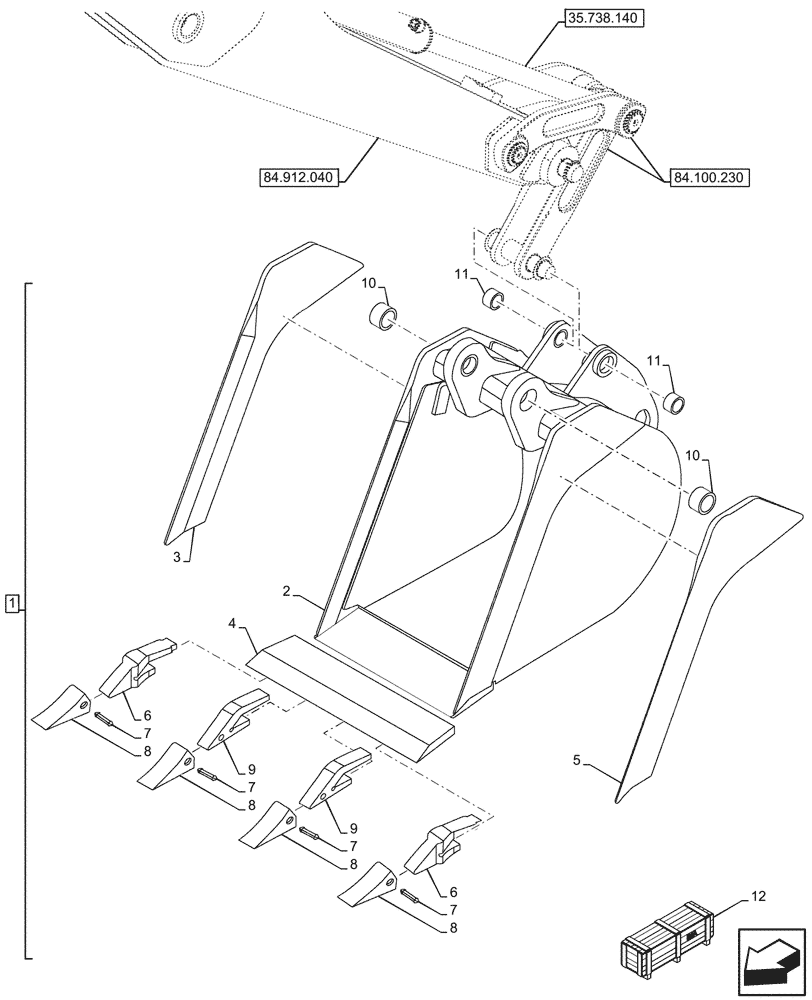

Запчасти Case 580N (84.100.030) - VAR - 423068 - BUCKET, UNIVERSAL 18INCH/457MM (84) - BOOMS, DIPPERS & BUCKETS

1

84416557

BUCKET,18 Inch HD

Grey, ASSY, 18in/457mm, Universal, with 4 Teeth, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

365942A1

CUTTING EDGE

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Blade, Incl in 1

1шт.

5

365941A1

CUTTING EDGE

LH

1шт.

6

84424392

BUCKET TOOTH SHANK

Outer

2шт.

7

84318739

BUCKET TOOTH KEY

4шт.

8

84318713

BUCKET TOOTH

4шт.

9

84318729

BUCKET TOOTH SHANK

Center

2шт.

10

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

11

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

12

84467273

BUCKET

Bucket 18 Inch Universal, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
