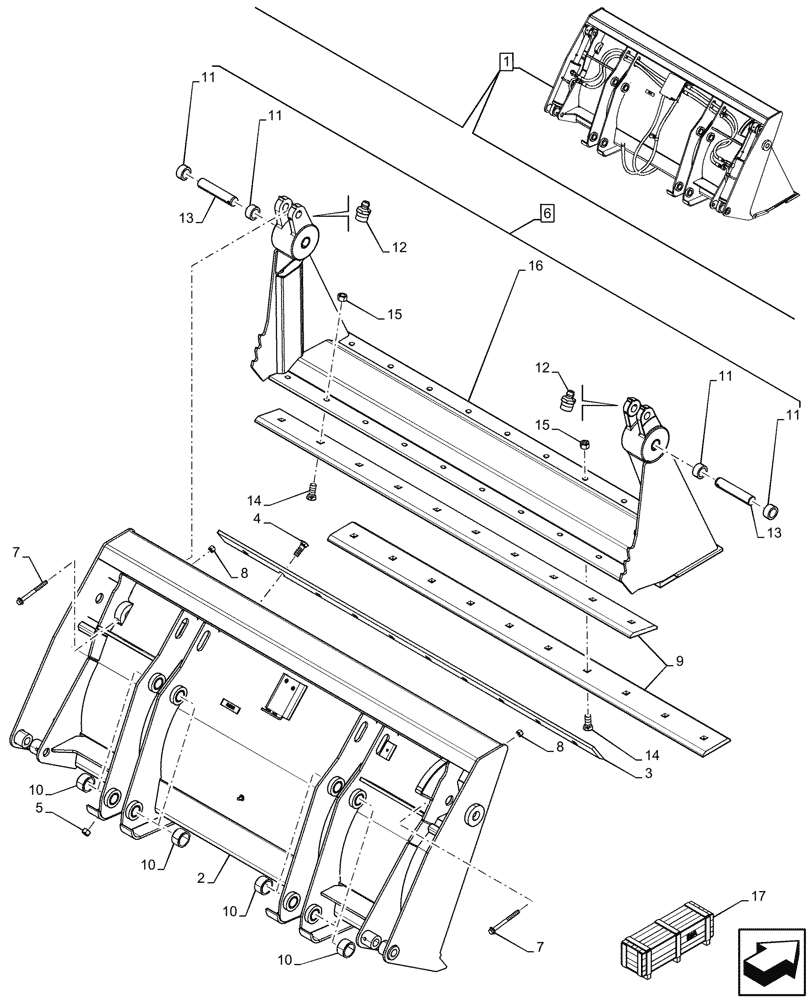

Запчасти Case 580N (82.300.070) - VAR - 747863 - 4-IN-1 BUCKET, 82INCH/2083MM, COMPONENTS (82) - FRONT LOADER & BUCKET

1

47802379

4 IN 1 BUCKET,82" L

ASSY, 82in/2082mm 4-IN-1, Incl 2 - 15

1шт.

See also 4 In 1 Bucket Components in Figures 35.723.230, 35.723.240, 90.108.024

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

121920A1

CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L

1шт.

4

20-21032

PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8

10шт.

5

29-1010

NUT,5/8"-11, G8

10шт.

6

175156A1

CLAMSHELL BUCKET

ASSY, Incl 11, 16

1шт.

7

844-10110

BOLT,Hvy Hex, M10 x 110mm, Cl 8.8

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

142300A1

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L

2шт.

10

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

2шт.

11

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

13

47803613

PIN,38mm OD x 190mm L

2шт.

14

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

20шт.

15

29-1012

NUT,3/4"-10, G8

20шт.

16

NSS

NOT SOLD SEPARAT

Clamshell, Incl in 6

1шт.

17

48054424

CONSTRUCTION DIA

Bucket 82Inch 4 in 1, Incl 1 - 15

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
