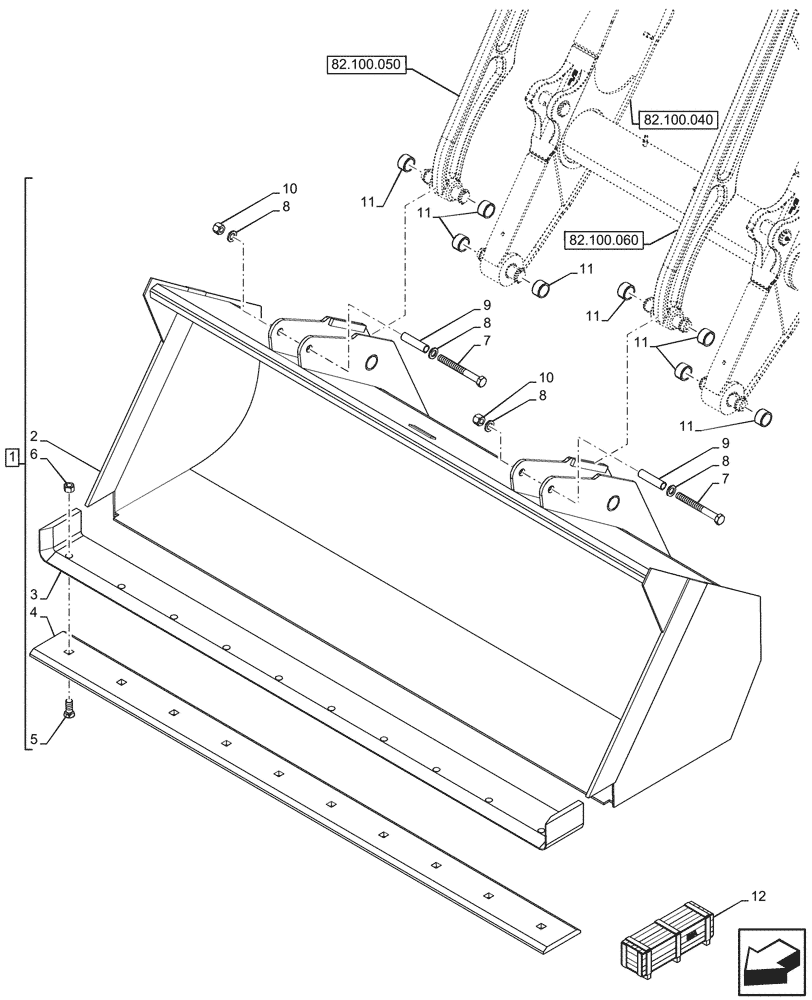

Запчасти Case 580N (82.300.040) - VAR - 747657 - BUCKET W/ CUTTING EDGE, 82INCH/2083MM LONG LIP (82) - FRONT LOADER & BUCKET

1

84422630

BUCKET,82 Inch W/ Cutting Edge

ASSY, Grey, 1YD 82Inch/2083mm HD LL, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

132988A1

CUTTING EDGE

1шт.

4

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

1шт.

5

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

6

29-1012

NUT,3/4"-10, G8

10шт.

7

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

2шт.

12

84482605

BUCKET

Bucket 82 Inch with Cutting Edge, Incl 1 - 11

1шт.

Valid for 580N (Livery) NRC Model only

1шт.
