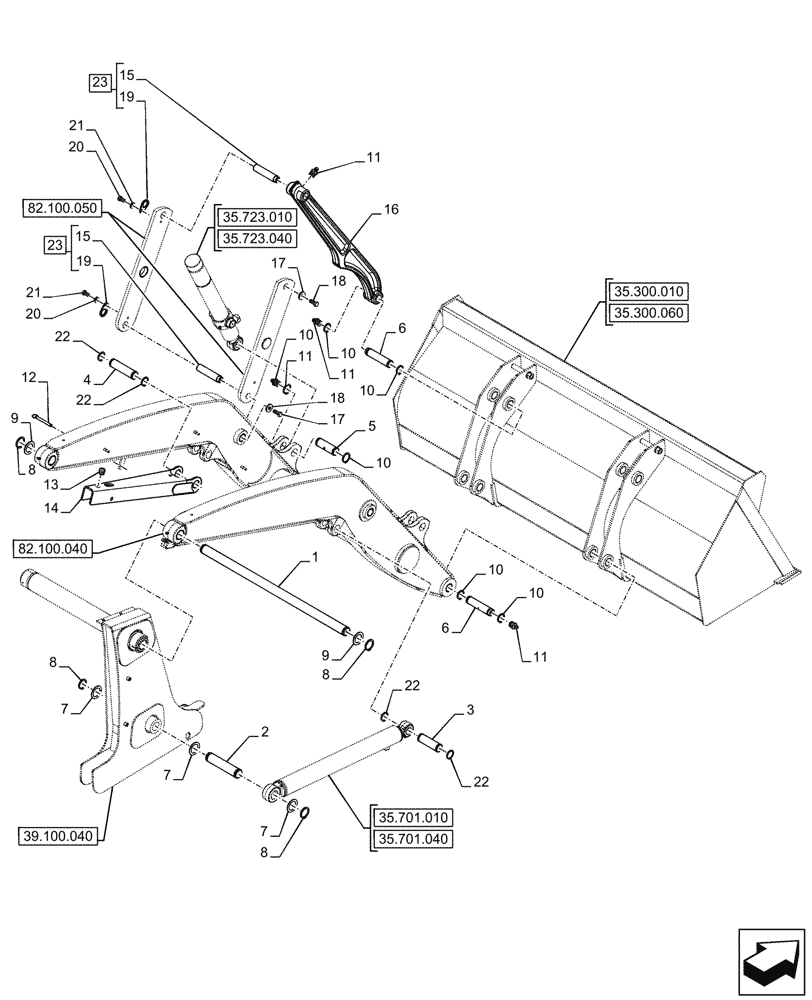

Запчасти Case 580N (82.100.060) - ARM, PIVOT, PIN (82) - FRONT LOADER & BUCKET

1

D145767

SHAFT,1113.4mm L

Cross

1шт.

2

335177A1

PIN,50mm OD x 234mm L

2шт.

3

84216891

PIN,44.4mm OD x 150mm L

1шт.

4

84216892

PIN,44.35mm OD x 179mm L

1шт.

5

84216893

PIN,44.4mm OD x 138.5mm L

2шт.

6

84367828

PIN,40mm OD x 180mm L

4шт.

7

495-81282

WASHER,2 1/16" x 3" x .109"

6шт.

8

800-44050

SNAP RING,M50, Ext

6шт.

9

181842A1

WASHER,50.4mm ID x 76mm OD x 3.6mm Thk

3шт.

10

800-44040

SNAP RING,M40, Ext

8шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

12

104824A1

PIN,12.7mm OD

1шт.

13

344892A1

GROMMET,25.4mm OD, 12.7mm ID, 26mm L

1шт.

14

84280275

STRUT

1шт.

15

NSS

NOT SOLD SEPARAT

Pin, Incl in 23

4шт.

16

47948342

LINK

Grey

2шт.

17

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

18

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

4шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 23

4шт.

20

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

21

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

22

86625149

SNAP RING,#175, Ext

8шт.

23

84270815

PIN,38.07mm OD x 173.5mm L

ASSY, Incl 15, 19

4шт.
