(55.512.390) - 6-SPOOL, 7-SPOOL, JOYSTICK, LH, BUTTON, W/ PILOT CONTROLS, W/O AUXILIARY HYDRAULIC, COMPONENTS

Запчасти Case 580N (55.512.390) - 6-SPOOL, 7-SPOOL, JOYSTICK, LH, BUTTON, W/ PILOT CONTROLS, W/O AUXILIARY HYDRAULIC, COMPONENTS (55) - ELECTRICAL SYSTEMS

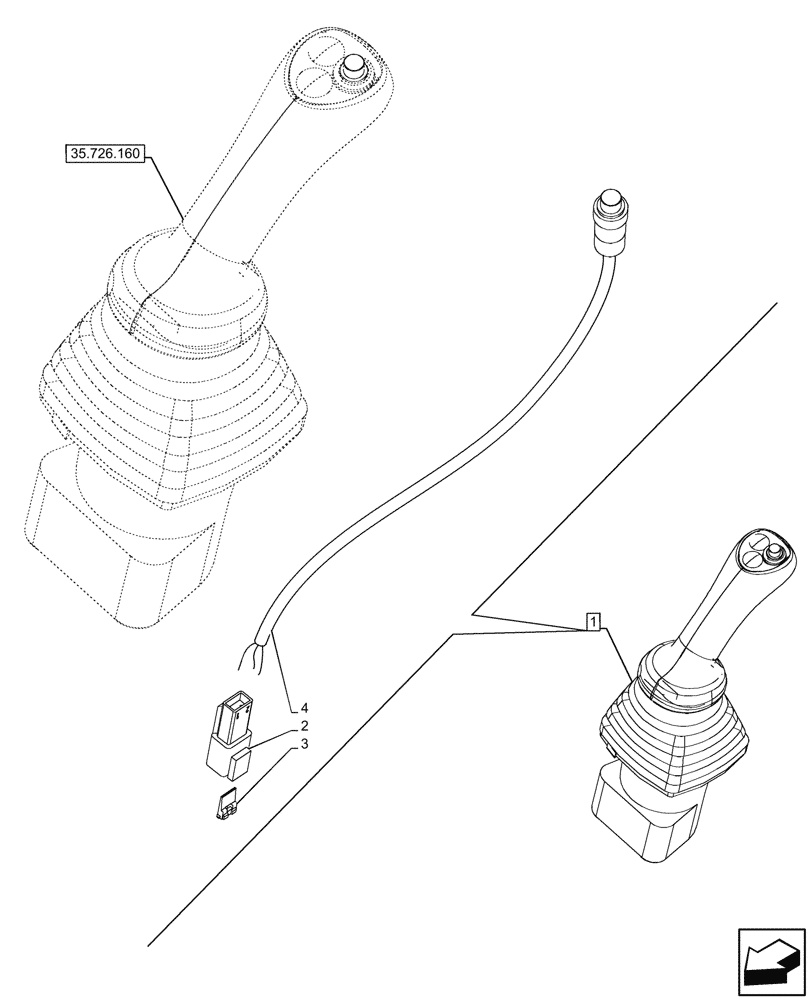

Схема запчастей Case 580N - (55.512.390) - 6-SPOOL, 7-SPOOL, JOYSTICK, LH, BUTTON, W/ PILOT CONTROLS, W/O AUXILIARY HYDRAULIC, COMPONENTS (55) - ELECTRICAL SYSTEMS
35.726.160
3
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685948

JOYSTICK

ASSY, LH, Incl 2 - 4

1шт.

See also Joystick Components in Figure 35.726.160

1шт.

2

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

3

225318C1

ELEC CONNECTOR,2 Pin

1шт.

4

87437372

SWITCH ASSY

Push Horn

1шт.
