(55.512.290) - 2-SPOOL CONTROL VALVE, POWERSHUTTLE, TRANSMISSION, LOADER, JOYSTICK MOUNTING

Запчасти Case 580N (55.512.290) - 2-SPOOL CONTROL VALVE, POWERSHUTTLE, TRANSMISSION, LOADER, JOYSTICK MOUNTING (55) - ELECTRICAL SYSTEMS

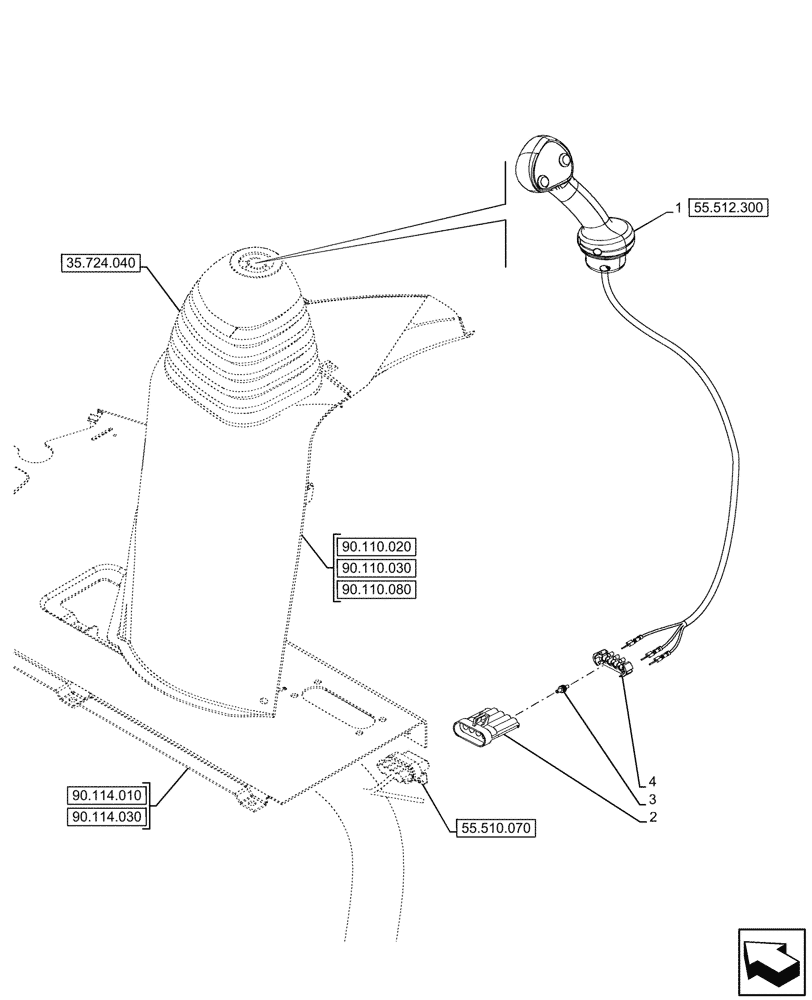

Схема запчастей Case 580N - (55.512.290) - 2-SPOOL CONTROL VALVE, POWERSHUTTLE, TRANSMISSION, LOADER, JOYSTICK MOUNTING (55) - ELECTRICAL SYSTEMS
90.110.030
1
2
1
3
4
55.512.300
90.114.030
90.110.020
90.110.080
90.114.010
55.510.070
35.724.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87638046

JOYSTICK

ASSY, Loader Control, 2 Button

1шт.

2

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

3

298176A1

PLUG

1шт.

4

258616A1

LOCK

1шт.

Выбрано товаров: 4
