(55.511.080) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, C-POST, HARNESS

Запчасти Case 580N (55.511.080) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, C-POST, HARNESS (55) - ELECTRICAL SYSTEMS

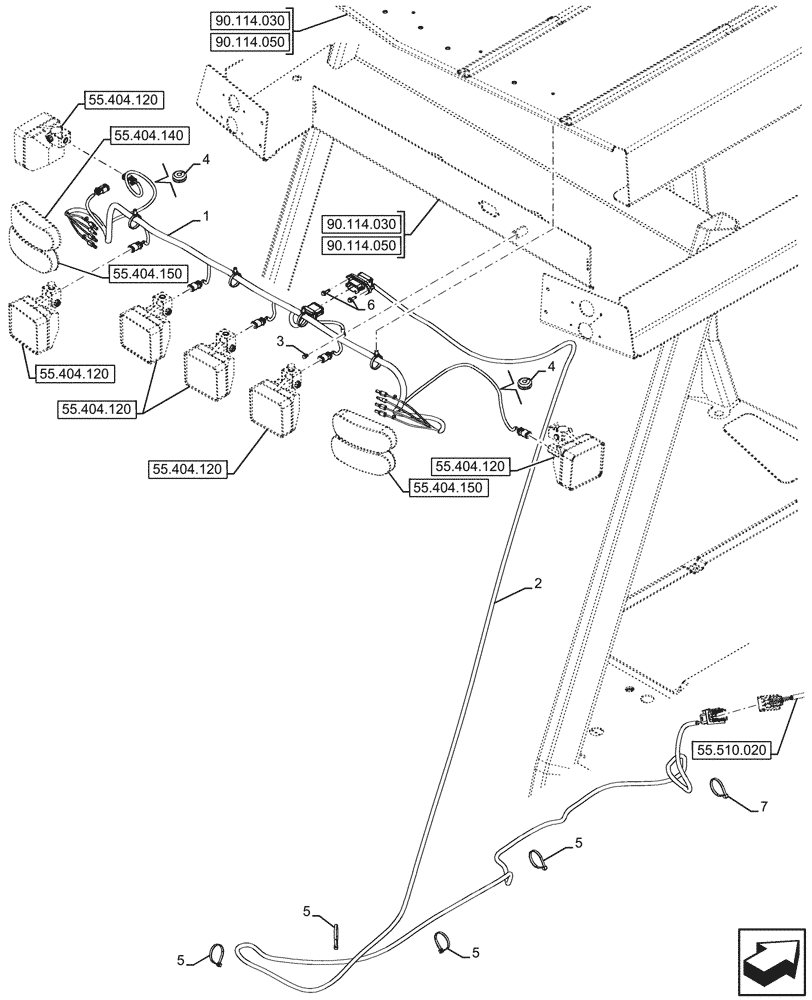

Схема запчастей Case 580N - (55.511.080) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, C-POST, HARNESS (55) - ELECTRICAL SYSTEMS
55.404.120
7
2
4
4
5
5
5
6
1
5
3
55.510.020
90.114.030
90.114.030
90.114.050
90.114.050
55.404.150
55.404.150
55.404.140
55.404.120
55.404.120
55.404.120
55.404.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714185

WIRE HARNESS

Rear Lights, Canopy

1шт.

2

47714176

WIRE HARNESS

C-Post, Canopy

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.

4

87370966

GROMMET,25.4mm OD, 7.94mm ID, 11.11mm L

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

6

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

Выбрано товаров: 7
