(55.511.070) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, C-POST, HARNESS

Запчасти Case 580N (55.511.070) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, C-POST, HARNESS (55) - ELECTRICAL SYSTEMS

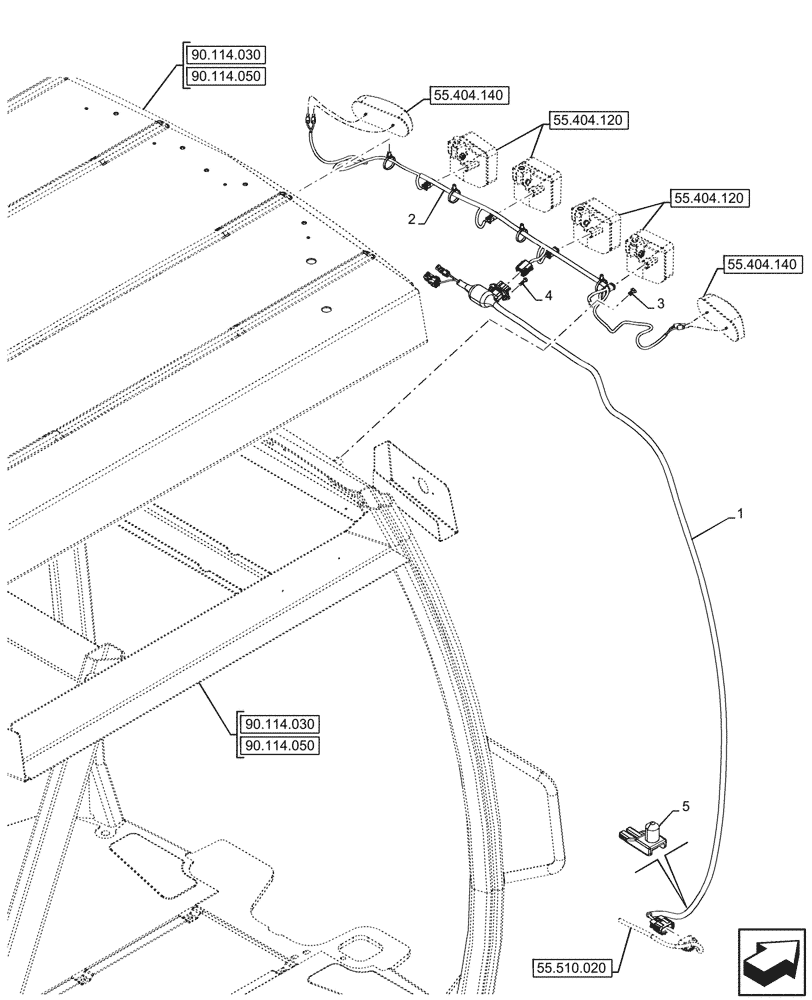

Схема запчастей Case 580N - (55.511.070) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, C-POST, HARNESS (55) - ELECTRICAL SYSTEMS
55.404.120
1
2
3
4
5
55.510.020
90.114.030
90.114.030
90.114.050
90.114.050
55.404.140
55.404.140
55.404.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47533349

WIRE HARNESS

A-Post, Canopy

1шт.

2

47533334

WIRE HARNESS

Front Lights, Canopy

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

1шт.

4

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

5

87707841

CLIP,Hole DIA 6.35mm

1шт.
