(55.511.010) - CANOPY, WORK LIGHT, HARNESS

Запчасти Case 580N (55.511.010) - CANOPY, WORK LIGHT, HARNESS (55) - ELECTRICAL SYSTEMS

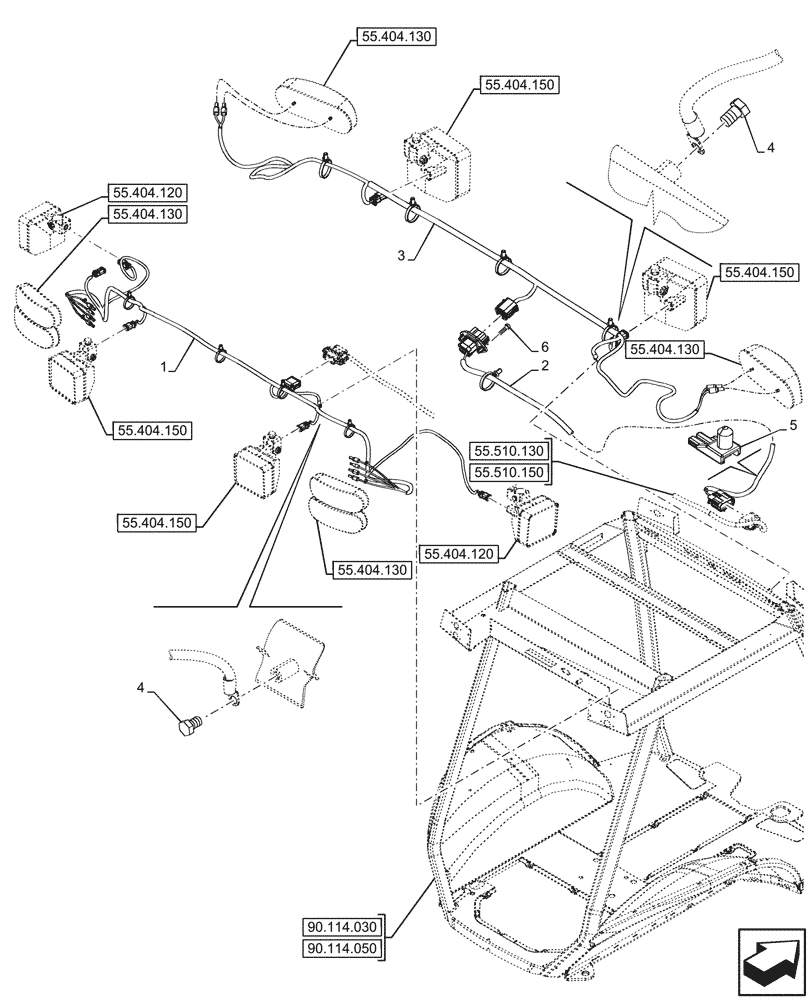

Схема запчастей Case 580N - (55.511.010) - CANOPY, WORK LIGHT, HARNESS (55) - ELECTRICAL SYSTEMS
55.404.130
1
6
3
5
4
2
4
55.510.150
90.114.030
90.114.050
55.510.130
55.404.150
55.404.150
55.404.150
55.404.150
55.404.120
55.404.120
55.404.130
55.404.130
55.404.130
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714184

WIRE HARNESS

Rear Lights, Canopy

1шт.

2

47533360

WIRE HARNESS

A-Post, Canopy

1шт.

3

47533362

WIRE HARNESS

Front Lights, Canopy

1шт.

4

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

5

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

6

87707841

CLIP,Hole DIA 6.35mm

1шт.
