(55.510.120) - POWERSHUTTLE, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION

Запчасти Case 580N (55.510.120) - POWERSHUTTLE, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION (55) - ELECTRICAL SYSTEMS

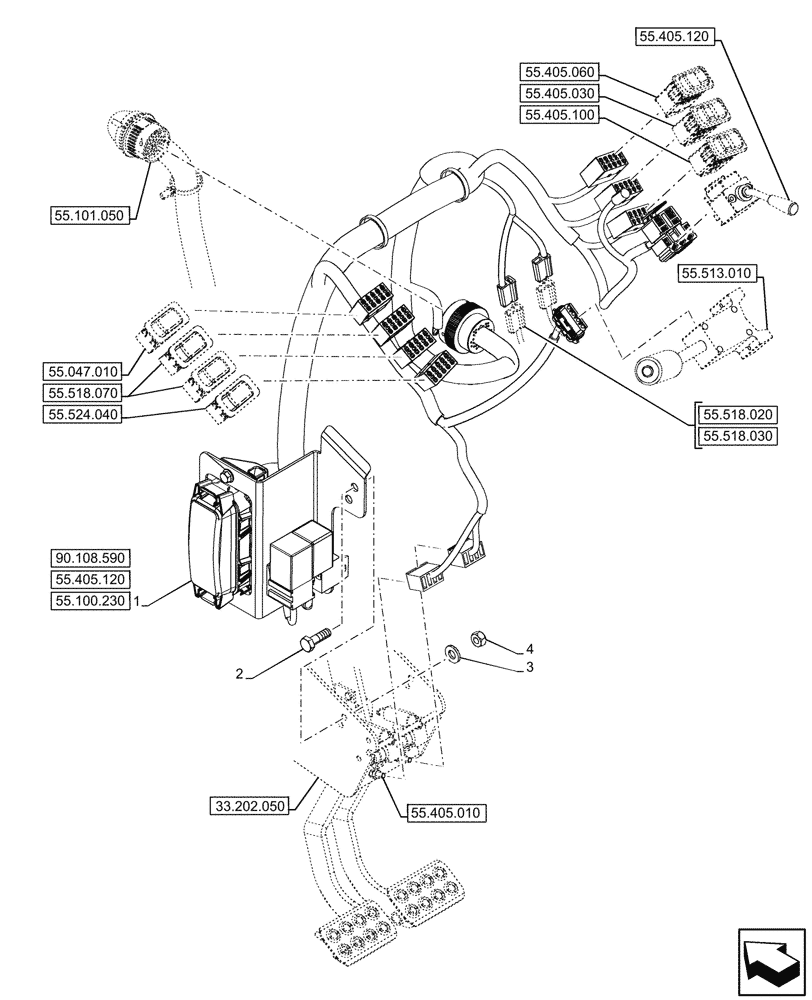

Схема запчастей Case 580N - (55.510.120) - POWERSHUTTLE, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION (55) - ELECTRICAL SYSTEMS
55.524.040
1
2
4
3
55.047.010
90.108.590
55.101.050
55.513.010
55.405.030
55.405.100
55.100.230
55.405.120
55.405.120
55.405.060
55.518.020
33.202.050
55.405.010
55.518.070
55.518.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342263

WIRE HARNESS

ASSY, Front Console, STD Transmission

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

Выбрано товаров: 4
