(55.510.100) - SEMI-POWERSHIFT, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION

Запчасти Case 580N (55.510.100) - SEMI-POWERSHIFT, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION (55) - ELECTRICAL SYSTEMS

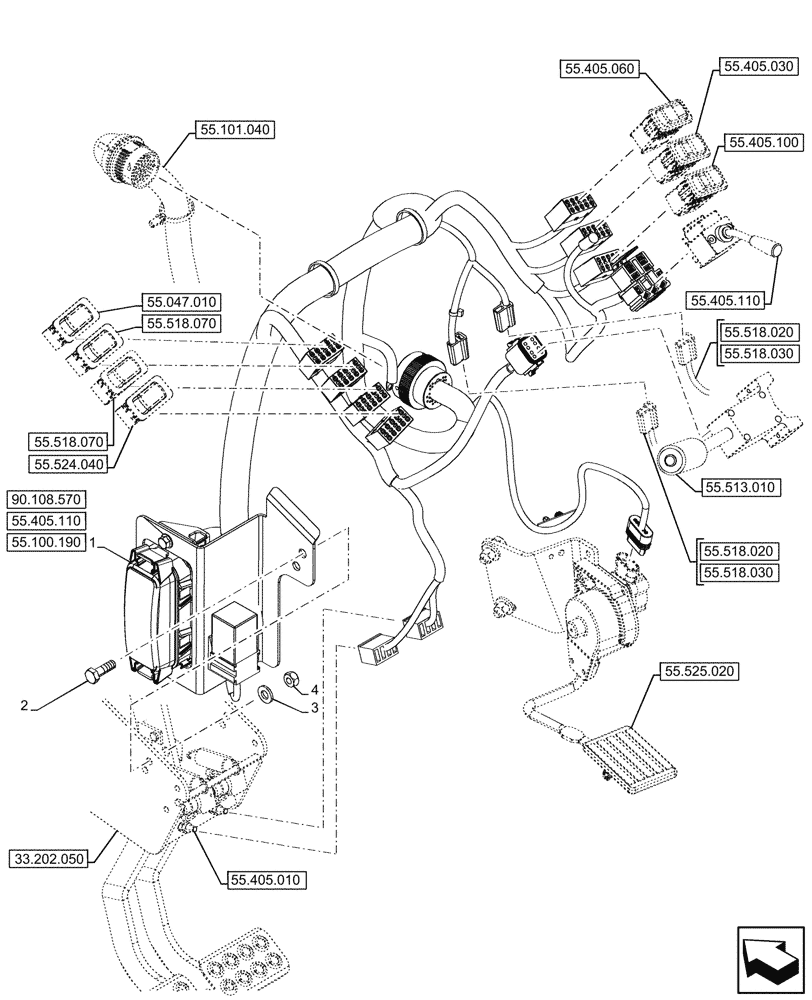

Схема запчастей Case 580N - (55.510.100) - SEMI-POWERSHIFT, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION (55) - ELECTRICAL SYSTEMS
55.524.040
1
4
3
2
55.405.110
55.405.110
55.047.010
90.108.570
55.513.010
55.101.040
55.405.030
55.405.100
55.518.020
55.518.020
55.405.060
55.100.190
33.202.050
55.525.020
55.518.070
55.518.070
55.405.010
55.518.030
55.518.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342271

WIRE HARNESS

ASSY, Front Console, SPS Transmission

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
