(55.405.110) - SEMI-POWERSHIFT, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION, INDICATOR LIGHT, SWITCH

Запчасти Case 580N (55.405.110) - SEMI-POWERSHIFT, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION, INDICATOR LIGHT, SWITCH (55) - ELECTRICAL SYSTEMS

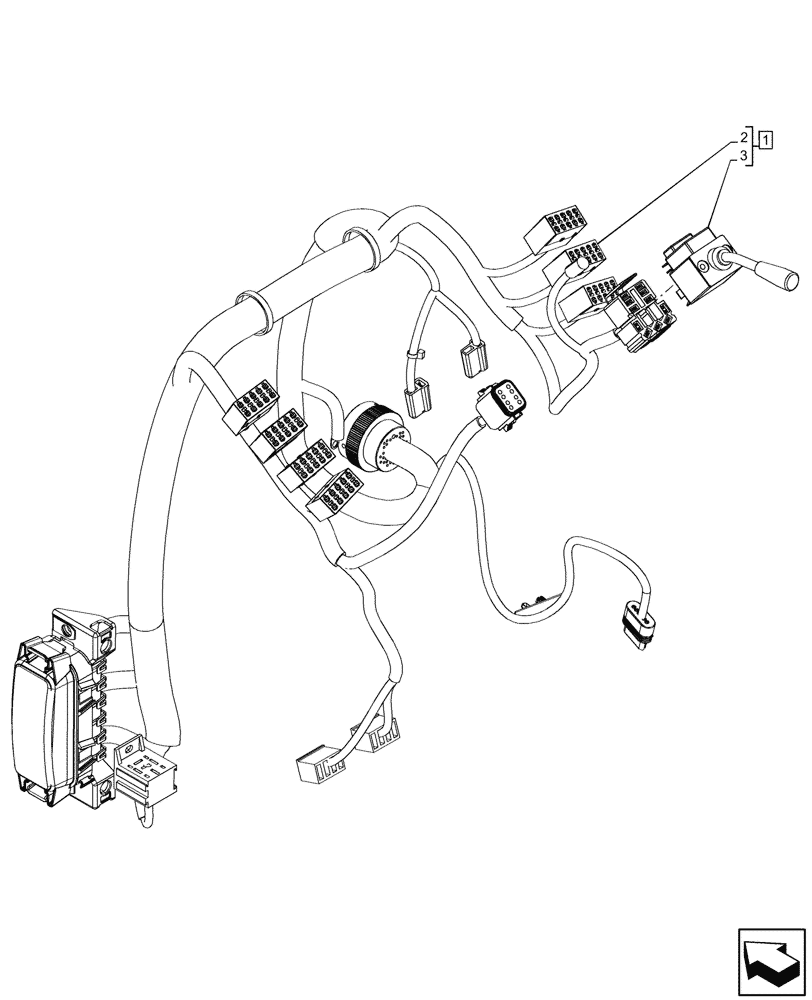

Схема запчастей Case 580N - (55.405.110) - SEMI-POWERSHIFT, TRANSMISSION, FRONT CONSOLE, HARNESS, W/ OPTION, INDICATOR LIGHT, SWITCH (55) - ELECTRICAL SYSTEMS
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84342271

WIRE HARNESS

ASSY, Front Console, SPS Transmission, Incl 2, 3

1шт.

See also Wire Harness Components in Figures 55.100.190, 90.108.570

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

389487A1

LIGHT SWITCH

Turn Signal/Driving Lamp High/Low Beam

1шт.
