(55.302.100) - VAR - 423093 - DUAL BATTERY, CABLE, JUMPER

Запчасти Case 580N (55.302.100) - VAR - 423093 - DUAL BATTERY, CABLE, JUMPER (55) - ELECTRICAL SYSTEMS

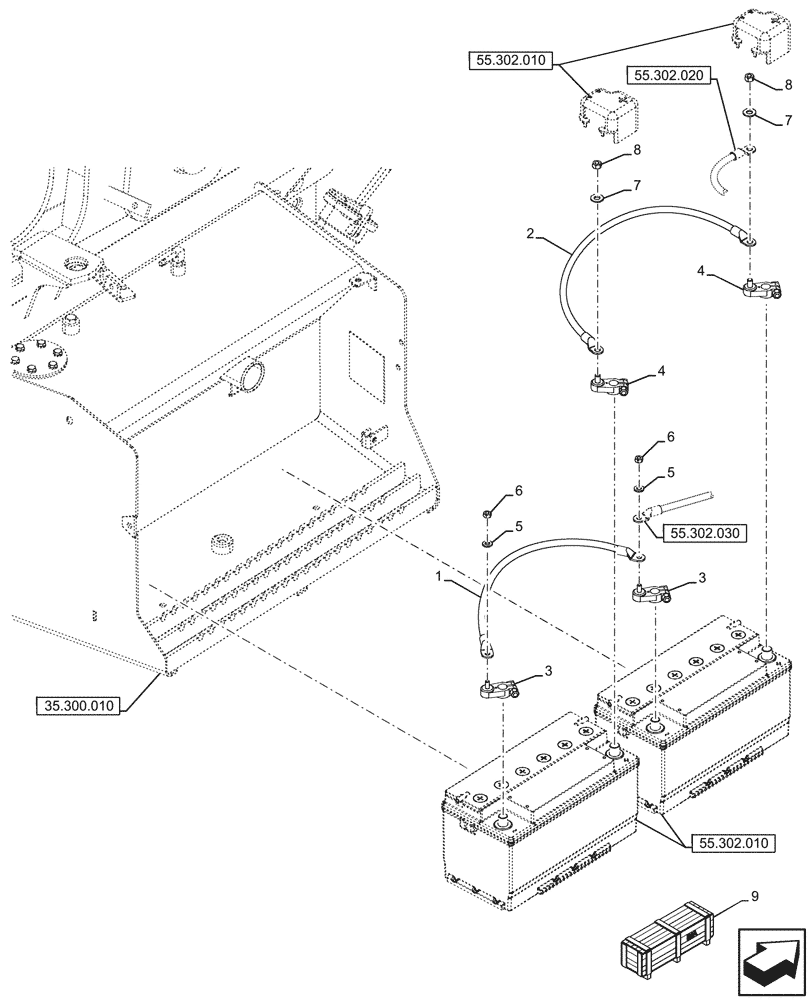

Схема запчастей Case 580N - (55.302.100) - VAR - 423093 - DUAL BATTERY, CABLE, JUMPER (55) - ELECTRICAL SYSTEMS
55.302.030
4
6
2
7
9
3
7
8
5
8
3
6
4
5
1
35.300.010
55.302.020
55.302.010
55.302.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87610682

NEG BATTERY CABLE,485mm L

1шт.

2

87610681

POS BATTERY CABLE

1шт.

3

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Negative

2шт.

4

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Positive

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

6

425-105

NUT,5/16"-18, G5

2шт.

7

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

87722930

CONSTRUCTION DIA

Dual Battery, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
