(55.302.010) - VAR - 423093 - DUAL BATTERY

Запчасти Case 580N (55.302.010) - VAR - 423093 - DUAL BATTERY (55) - ELECTRICAL SYSTEMS

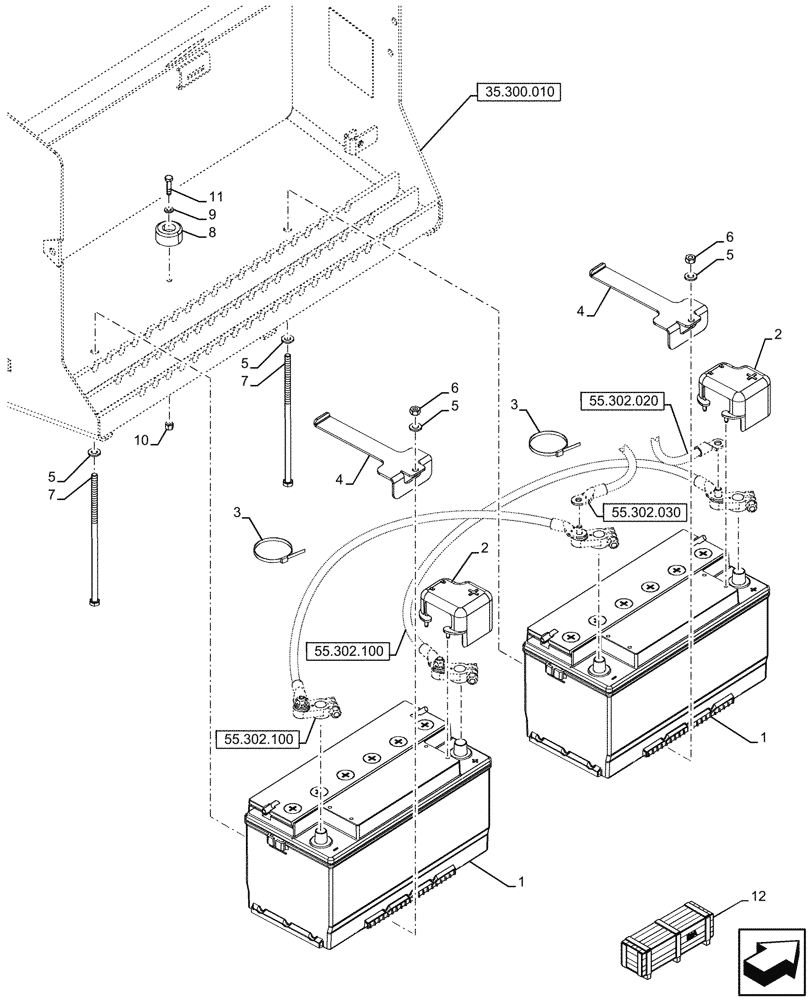

Схема запчастей Case 580N - (55.302.010) - VAR - 423093 - DUAL BATTERY (55) - ELECTRICAL SYSTEMS
55.302.030
7
10
5
1
9
7
5
2
1
8
2
5
6
3
6
11
12
3
4
4
5
35.300.010
55.302.100
55.302.100
55.302.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

For North America

2шт.

2

87664021

COVER

Positive Protective

2шт.

3

87486703

CABLE TIE,312mm L

Securing

2шт.

4

87653377

BRACKET

Battery Tie Down

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

7

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

2шт.

8

87671746

BUMPER,Neoprene

1шт.

9

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

1шт.

11

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

12

87722930

CONSTRUCTION DIA

Dual Battery, Incl 2 - 11

1шт.

Valid for 590SN (Livery) NRC Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
