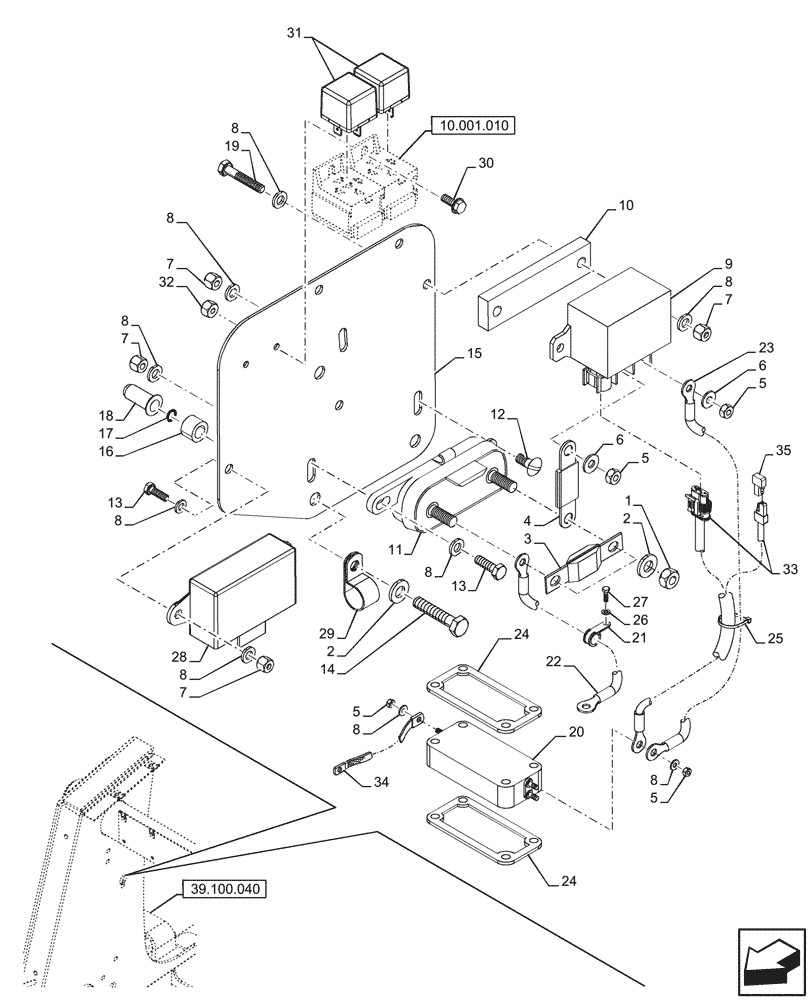

Запчасти Case 580N (55.202.030) - VAR - 423093 - GRID HEATER, COLD START SYSTEM (55) - ELECTRICAL SYSTEMS

1

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

3

87410602

FUSE,300A, Blade

1шт.

4

87410265

BAR

1шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

6шт.

8

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

12шт.

9

86619908

RELAY,12V, 150A

1шт.

10

87414237

PLATE,25mm W x 102mm L x 10mm Thk

1шт.

11

440038A1

JUNCTION BLOCK

1шт.

12

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

14

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

15

87397601

BRACKET, SUPPORTING,2mm Thk

2mm Thk

1шт.

16

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

17

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

3шт.

18

87417383

THREADED INSERT,M8 x 1.25

3шт.

19

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

20

82017872

HEATER

1шт.

21

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

22

87419615

CABLE ASSY.

1шт.

23

87608352

WIRE HARNESS

1шт.

24

86014151

GASKET,93mm L x 98mm L

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

26

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

27

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

28

47132002

HEATER

1шт.

29

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

30

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

31

84543666

RELAY,12V, 40A, Mini

2шт.

32

231-24409

NUT,#10-32

2шт.

33

87396228

WIRE HARNESS

1шт.

34

87413162

GROUND STRAP

1шт.

35

87516581

RESISTOR,3.01kohm, 0.5W

1шт.
