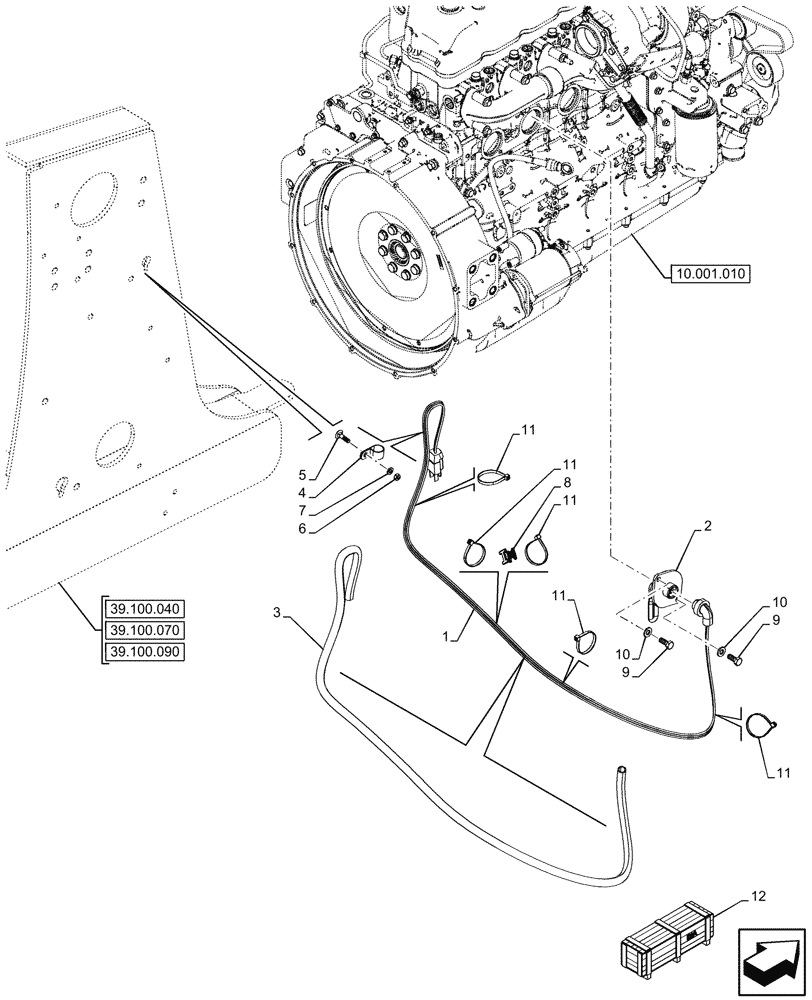

Запчасти Case 580N (55.202.010) - VAR - 423088 - BLOCK HEATER (55) - ELECTRICAL SYSTEMS

1

196466A1

ELECTRIC CABLE

Block Heater

1шт.

2

47728667

BLOCK HEATER

1шт.

3

47829718

GUARD

1шт.

4

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

5

711-6025

CARRIAGE BOLT,Sq Nk, M6 x 1 x 25mm, Cl 8.8

1шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

7

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

8

84318895

SPACER,17.97mm H

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

12

87447135

SERVICE KIT

Block Heater, Incl 1, 2, 9 - 11

1шт.

Valid for 590SN (Livery) NRC Model only

1шт.
