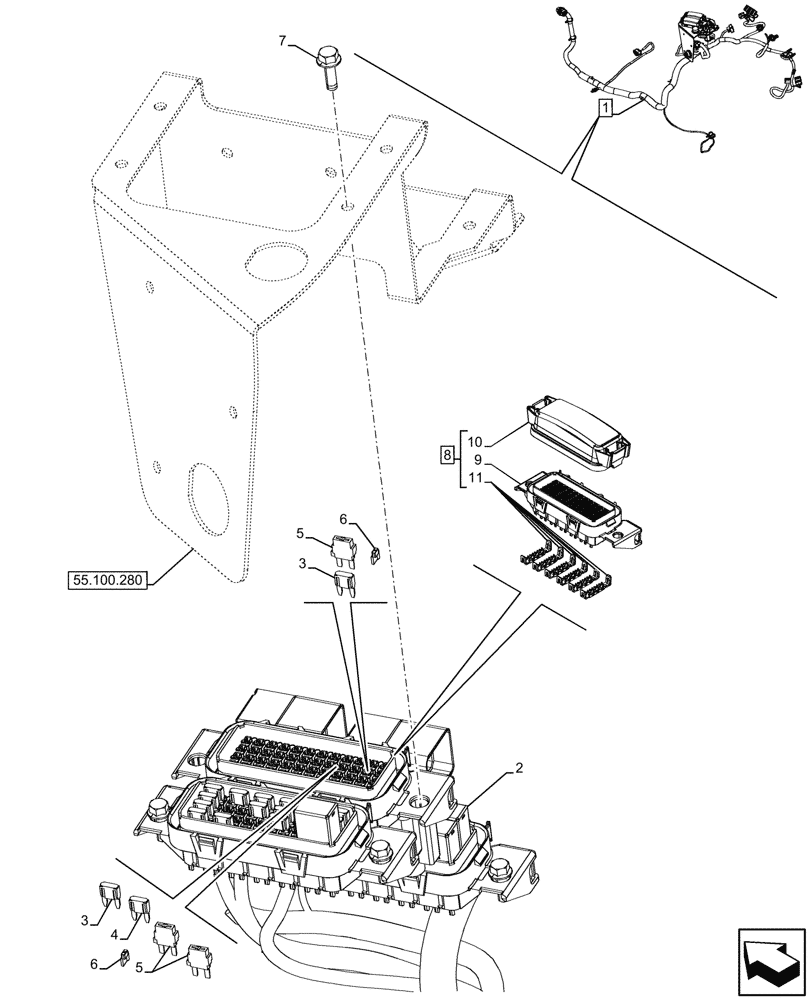

Запчасти Case 580N (55.100.290) - CANOPY, SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAYS, FUSE BOX (55) - ELECTRICAL SYSTEMS

1

47714196

WIRE HARNESS

ASSY, Side Console, STD Transmission, Incl 2 - 11

1шт.

See also Wire Harness Components in Figures 55.100.280, 55.100.300, 90.108.620

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

121410A1

FUSE,5A, Mini, Tan

2шт.

4

121412A1

FUSE,10A, Mini, Red

1шт.

5

416569A1

DIODE ELEMENT,7300W

3шт.

6

84292399

KEY

Key

3шт.

7

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

8

84380518

FUSE BOX

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Support, Incl in 8

1шт.

10

84404932

COVER

1шт.

11

84342278

CONNECTING BLOCK

6шт.
