(55.100.220) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAYS, FUSE BOX

Запчасти Case 580N (55.100.220) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAYS, FUSE BOX (55) - ELECTRICAL SYSTEMS

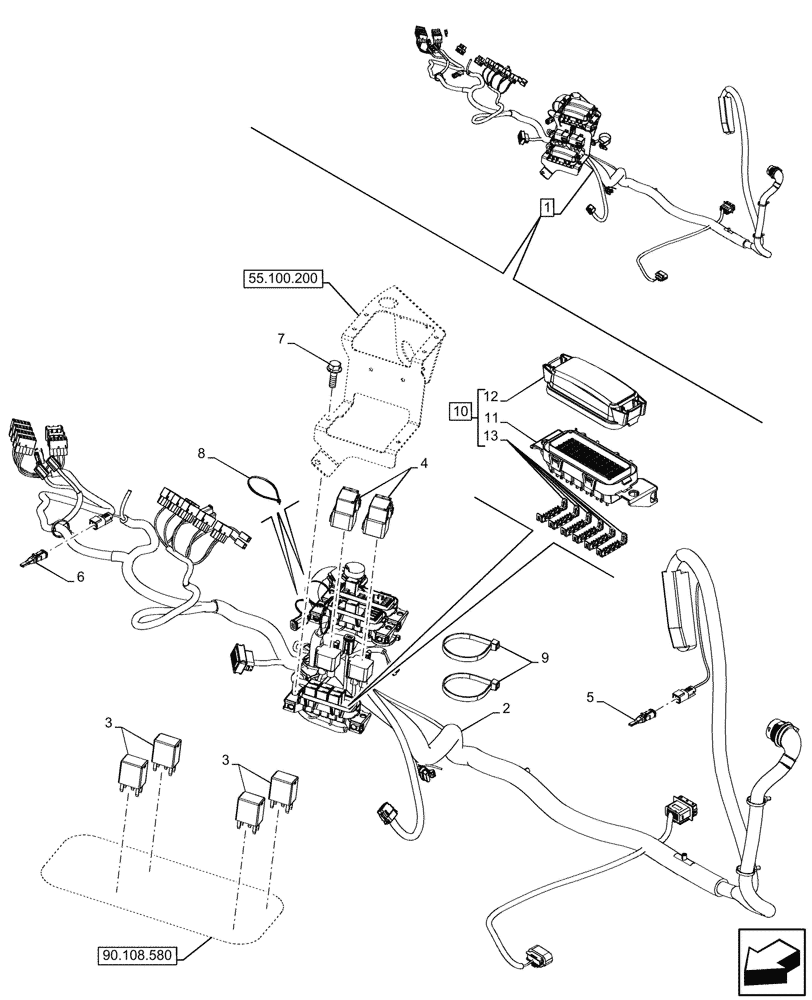

Схема запчастей Case 580N - (55.100.220) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAYS, FUSE BOX (55) - ELECTRICAL SYSTEMS
90.108.580
12
9
6
3
5
1
11
3
2
7
4
13
10
8
55.100.200
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84292427

HARNESS

ASSY, Side Console, SPS Transmission, Incl 2 - 13

1шт.

See also Harness Components in Figures 55.100.200, 55.100.210, 90.108.580

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

87655334

RELAY,12V, 35A, Micro

4шт.

4

84271717

RELAY,12V, 50A

Sealed

2шт.

5

84271442

RESISTOR

Can Bus Terminating

1шт.

6

84271440

RESISTOR

Oil Temp

1шт.

7

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

9

84292402

CABLE TIE,203mm L

3шт.

10

84380518

FUSE BOX

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 10

1шт.

12

84404932

COVER

1шт.

13

84342278

CONNECTING BLOCK

6шт.
