(55.100.210) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAY, FUSE BOX

Запчасти Case 580N (55.100.210) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS

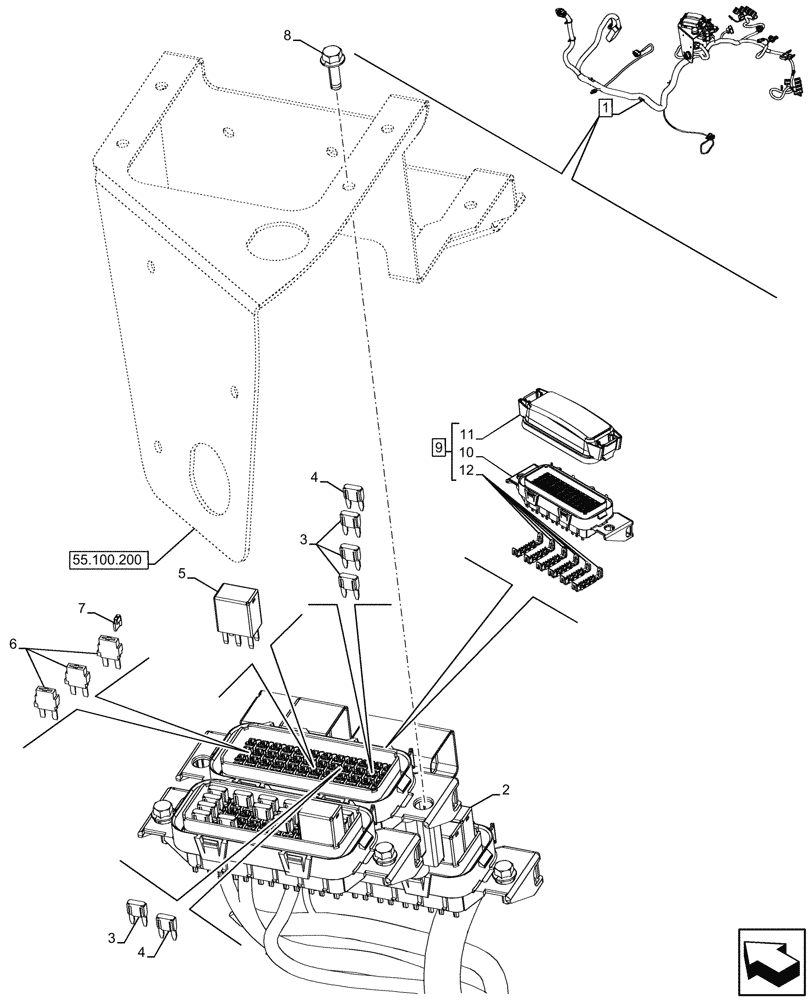

Схема запчастей Case 580N - (55.100.210) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS
55.100.200
11
2
9
4
8
3
1
10
3
7
6
4
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84292427

HARNESS

ASSY, Side Console, SPS Transmission, Incl 2 - 12

1шт.

See also Harness Components in Figures 55.100.200, 55.100.220, 90.108.580

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

121410A1

FUSE,5A, Mini, Tan

4шт.

4

121412A1

FUSE,10A, Mini, Red

2шт.

5

87655334

RELAY,12V, 35A, Micro

1шт.

6

416569A1

DIODE ELEMENT,7300W

3шт.

7

84292399

KEY

Key

3шт.

8

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

9

84380518

FUSE BOX

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 9

1шт.

11

84404932

COVER

1шт.

12

84342278

CONNECTING BLOCK

6шт.
