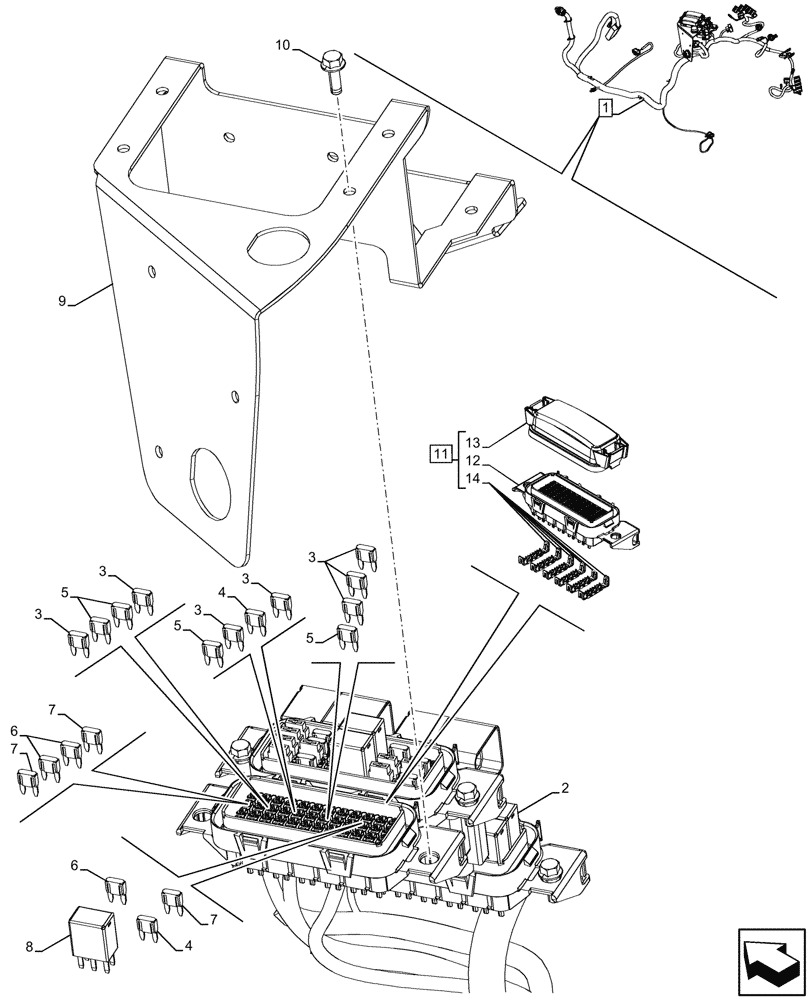

Запчасти Case 580N (55.100.200) - SEMI-POWERSHIFT, TRANSMISSION, SIDE CONSOLE, HARNESS, W/ OPTION, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS

1

84292427

HARNESS

ASSY, Side Console, SPS Transmission, Incl 2 - 14

1шт.

See also Harness Components in Figures 55.100.210, 55.100.220, 90.108.580

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

121410A1

FUSE,5A, Mini, Tan

7шт.

4

121411A1

FUSE,7.5A, Mini, Brown

2шт.

5

121412A1

FUSE,10A, Mini, Red

4шт.

6

121413A1

FUSE,15A, Mini, Blue

3шт.

7

121416A1

FUSE,30A, Mini, Green

3шт.

8

87655334

RELAY,12V, 35A, Micro

1шт.

9

84292270

BRACKET

Side Console

1шт.

10

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

11

84380518

FUSE BOX

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Support, Incl in 11

1шт.

13

84404932

COVER

1шт.

14

84342278

CONNECTING BLOCK

6шт.
