(55.100.120) - VAR - 423084 - HARNESS, HAMMER, PILOT CONTROLS

Запчасти Case 580N (55.100.120) - VAR - 423084 - HARNESS, HAMMER, PILOT CONTROLS (55) - ELECTRICAL SYSTEMS

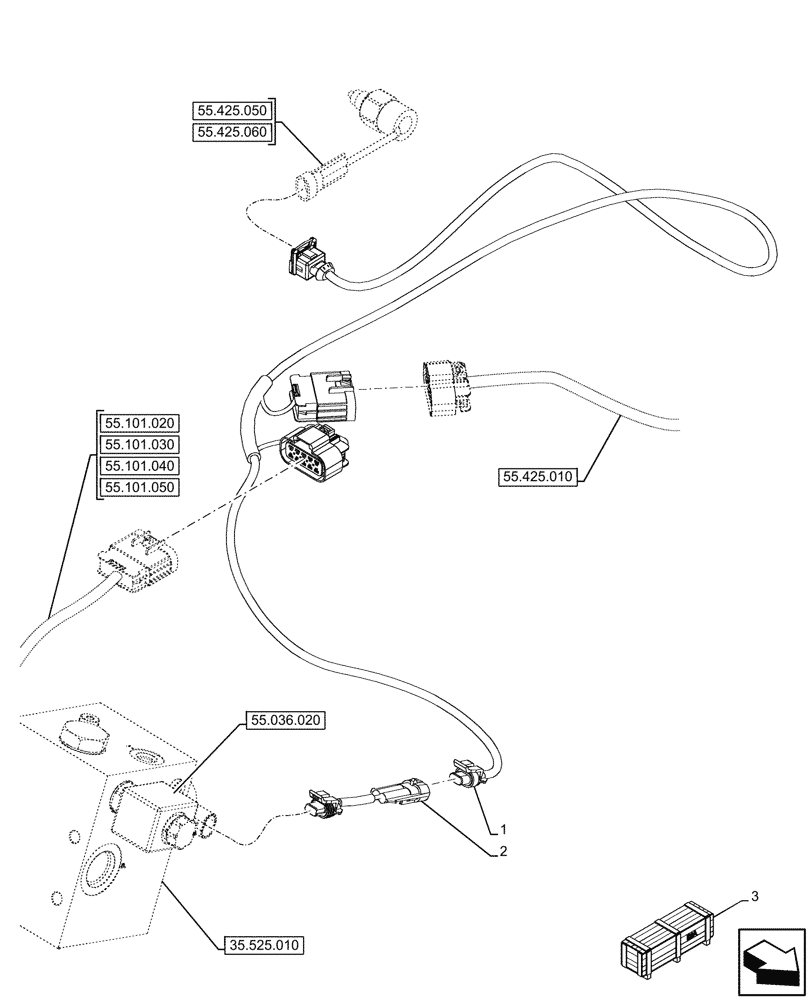

Схема запчастей Case 580N - (55.100.120) - VAR - 423084 - HARNESS, HAMMER, PILOT CONTROLS (55) - ELECTRICAL SYSTEMS
55.101.030
3
1
2
55.425.010
55.425.050
55.101.020
35.525.010
55.101.050
55.101.040
55.036.020
55.425.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84292393

WIRE HARNESS

Combo Auxiliary, Pilot Control

1шт.

2

84386573

WIRE HARNESS

Jumper

1шт.

3

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1, 2

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1, 2

1шт.

Valid for 580SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1, 2

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1, 2

1шт.

Valid for 580N NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1, 2

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47661834

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Incl 1

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1, 2

1шт.

Valid for 580SN (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Incl 1

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47662033

CONSTRUCTION DIA

Uni-Auxiliary to Combo Auxiliary, Incl 1, 2

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
