Запчасти Case 580N (55.050.030) - VAR - 747853, 747855 - AIR CONDITIONING, AIR PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS

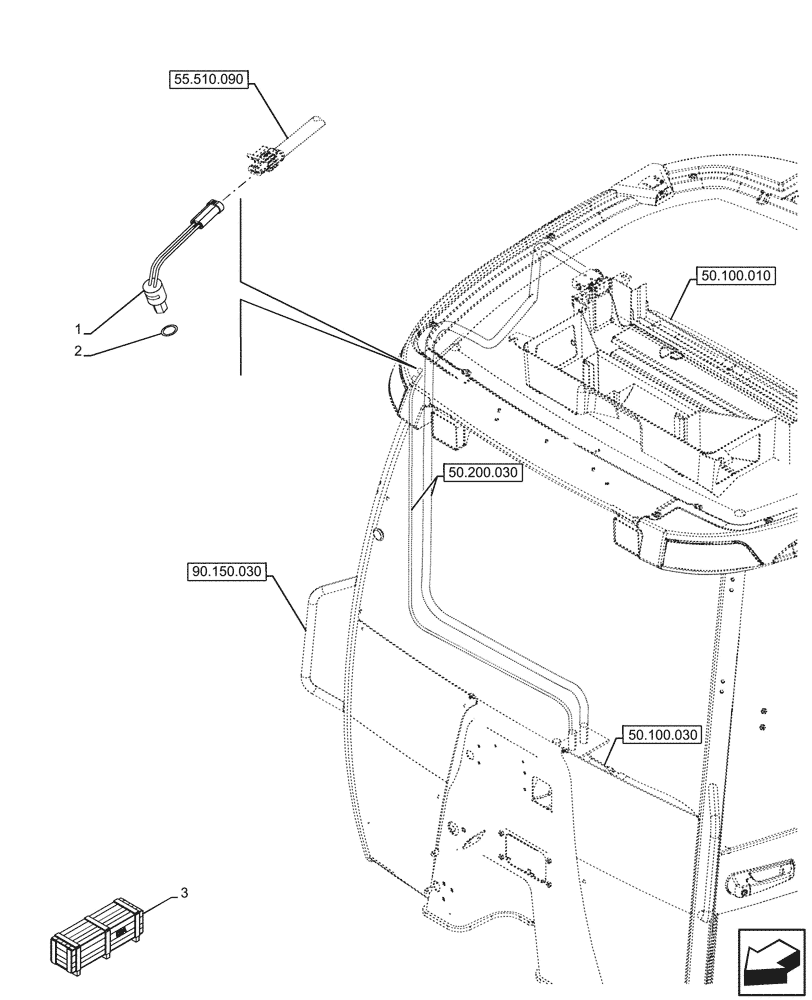

Схема запчастей Case 580N - (55.050.030) - VAR - 747853, 747855 - AIR CONDITIONING, AIR PRESSURE SWITCH (55) - ELECTRICAL SYSTEMS
90.150.030
1
2
3
55.510.090
50.100.030
50.100.010
50.200.030

Артикул

Название

Примечание

Количество

1

87000228

SWITCH, A/C LOW PRES

Low Pressure

1шт.

2

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

3

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1, 2

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
