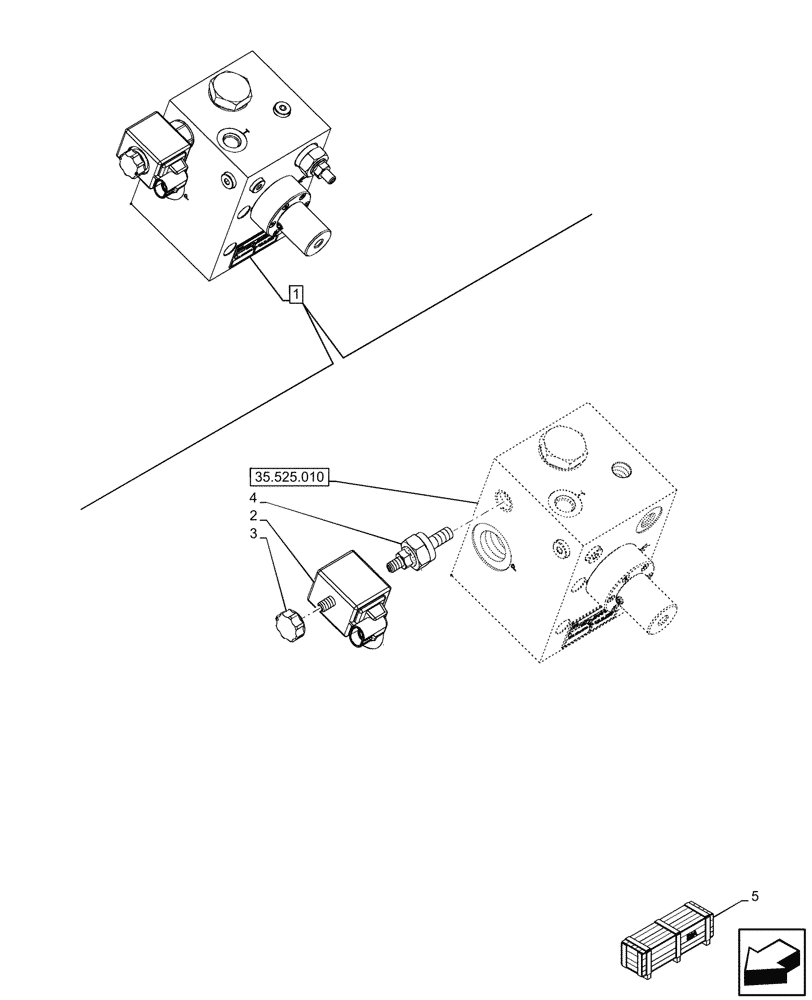

Запчасти Case 580N (55.036.020) - VAR - 423083 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

1

84247109

VALVE

ASSY, Open Center Uni-Aux, Incl 2 - 4

1шт.

See also Valve Components in Figure 35.525.010

1шт.

2

84478803

COIL

Solenoid with Connector Diode

1шт.

3

9970384

RING NUT

1шт.

4

47491458

SOLENOID VALVE

1шт.

5

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 4

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 4

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
