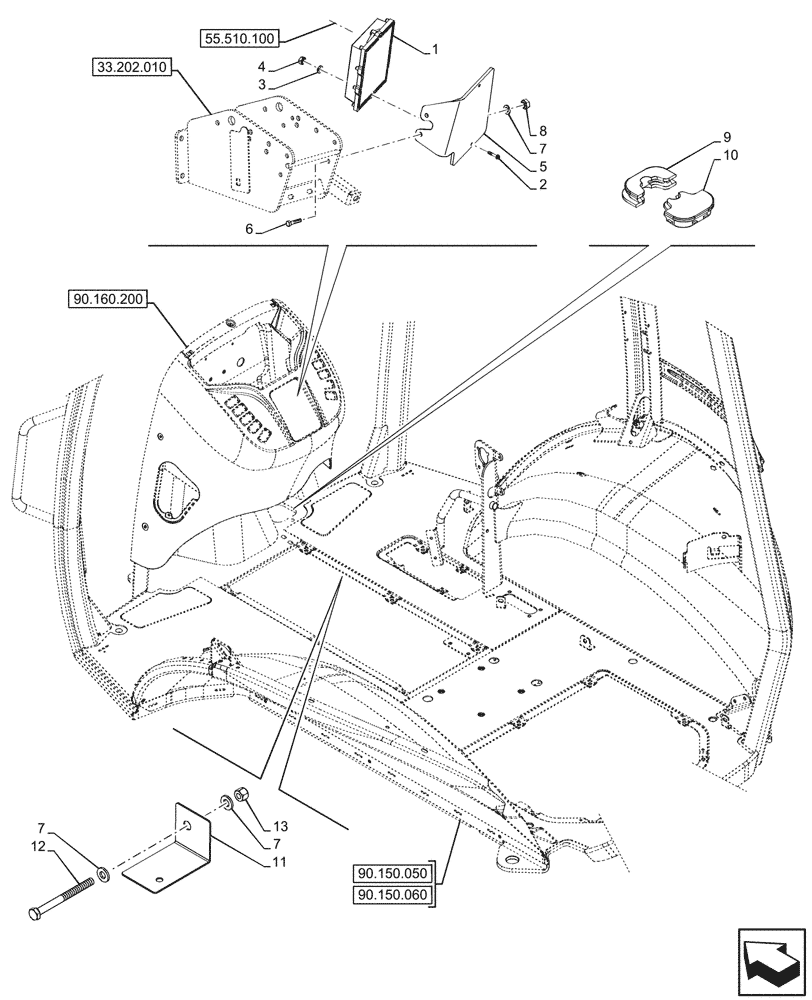

Запчасти Case 580N (55.024.020) - VAR - 423060, 423061 - SEMI-POWERSHIFT, TRANSMISSION, ELECTRONIC CONTROLS, MODULE (55) - ELECTRICAL SYSTEMS

1

84278195

ECU

Semi-Powershift Transmission

1шт.

2

864-5040

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

4

824-1405

NUT,M5, Cl 5

2шт.

5

87644491

BRACKET

Semi-Powershift Transmission Controller

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

397443A2

SEAL,110mm L

1шт.

10

397493A2

SEAL,106mm L

1шт.

11

84328358

BRACKET

Semi-Powershift Transmission

1шт.

12

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

1шт.

13

412250

NUT,M8 x 1.25, Cl 8

1шт.
