(55.022.050) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, TEMPERATURE, SENSOR, 4WD

Запчасти Case 580N (55.022.050) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, TEMPERATURE, SENSOR, 4WD (55) - ELECTRICAL SYSTEMS

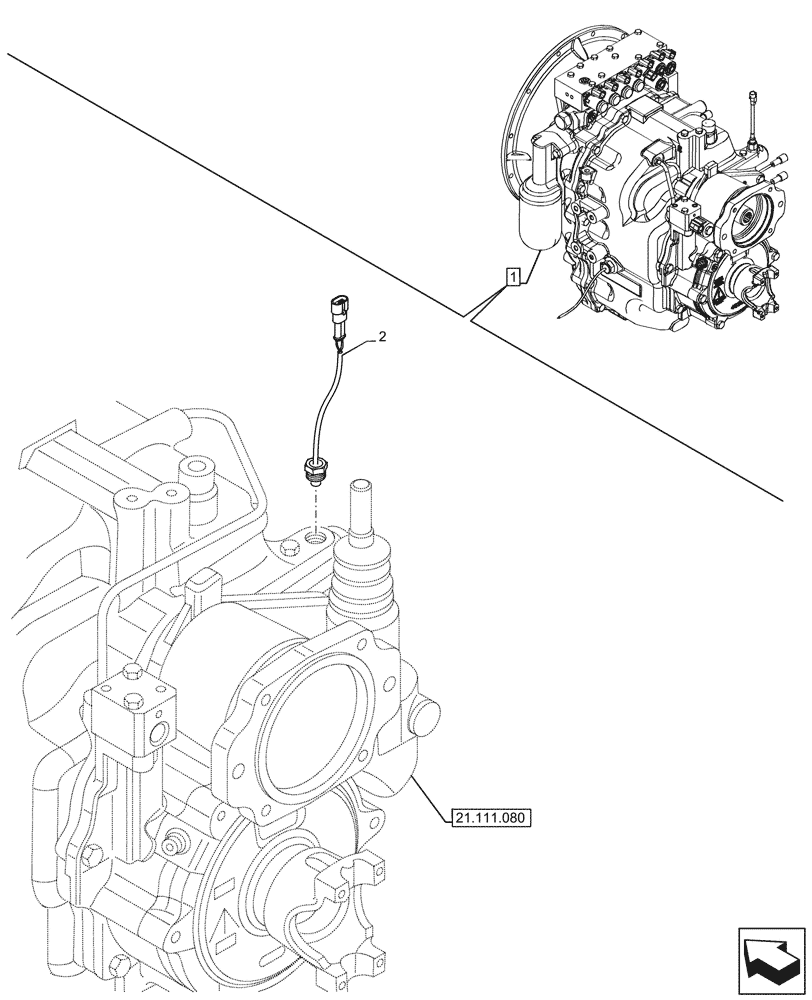

Схема запчастей Case 580N - (55.022.050) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, TEMPERATURE, SENSOR, 4WD (55) - ELECTRICAL SYSTEMS
21.111.080
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.111.080, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

87705447

SENSOR

Thermostat

1шт.
