(50.200.080) - VAR - 747853, 747855 - AIR CONDITIONING, RECEIVER-DRYER, LINE

Запчасти Case 580N (50.200.080) - VAR - 747853, 747855 - AIR CONDITIONING, RECEIVER-DRYER, LINE (50) - CAB CLIMATE CONTROL

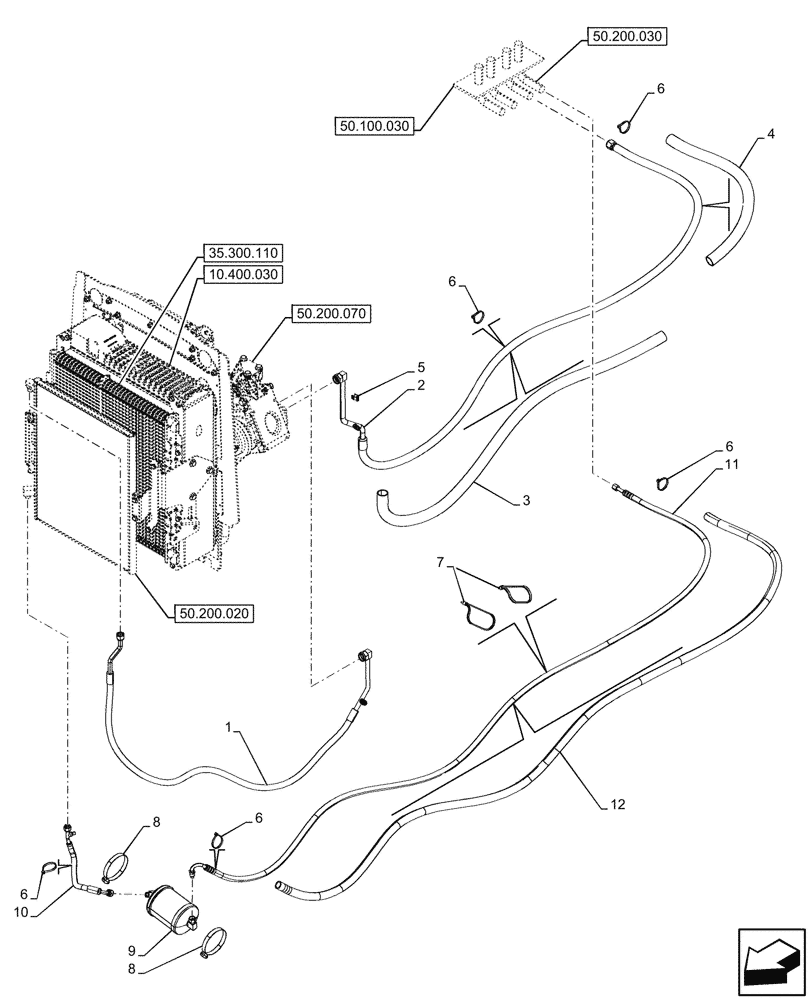

Схема запчастей Case 580N - (50.200.080) - VAR - 747853, 747855 - AIR CONDITIONING, RECEIVER-DRYER, LINE (50) - CAB CLIMATE CONTROL
50.200.030
7
6
10
12
6
8
5
9
4
1
3
6
6
8
11
2
6
50.200.020
10.400.030
50.200.070
50.100.030
35.300.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84398074

A/C HOSE,1350mm L

Compressor to Condenser

1шт.

2

84490123

A/C HOSE,2479mm L

Cab to Compressor

1шт.

3

87726951

HOSE PROTECTION,26.3mm ID x 1200mm L

1шт.

4

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

5

84292413

MOUNTING CLIP,15mm ID

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

8

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

9

86984155

RECEIVER-DRYER

1шт.

10

87630218

A/C HOSE,340mm L

Condenser to Dryer

1шт.

11

84418866

HOSE,8mm ID x 2787mm L

Dryer to Cab

1шт.

12

84522912

HOSE PROTECTION,19.1mm ID x 2670mm L

Conduit, Polypropylene

1шт.
