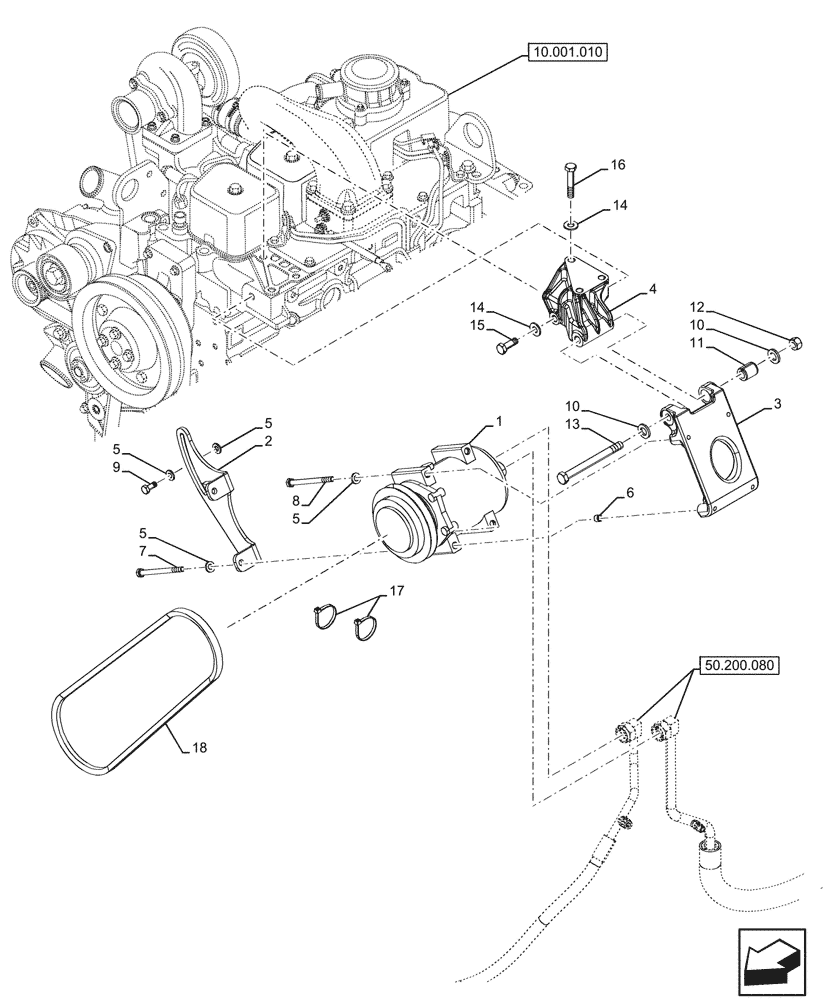

Запчасти Case 580N (50.200.070) - VAR - 747853, 747855 - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL

1

84159489

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

1шт.

2

87429949

BRACKET, SUPPORTING

Air Conditioning, Compressor Mounting

1шт.

3

87429948

SUPPORT

Air Conditioning, Compressor

1шт.

4

87429950

SUPPORT

Air Conditioning, Compressor Mounting

1шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

6

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

Spacer, Stud Dowel Ring

2шт.

7

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

8

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

11

87429951

SPACER,12.5mm ID x 22.4mm OD x 27mm L

1шт.

12

829-1412

NUT,M12, Cl 10.9

1шт.

13

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

16

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

3шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

18

87393292

V-BELT,13.5 mm W x 1206.5mm L

Air Conditioning, Compressor, 36 Degrees

1шт.
