Запчасти Case 580N (50.200.060) - VAR - 747853, 747855 - AIR CONDITIONING, AIR DUCT (50) - CAB CLIMATE CONTROL

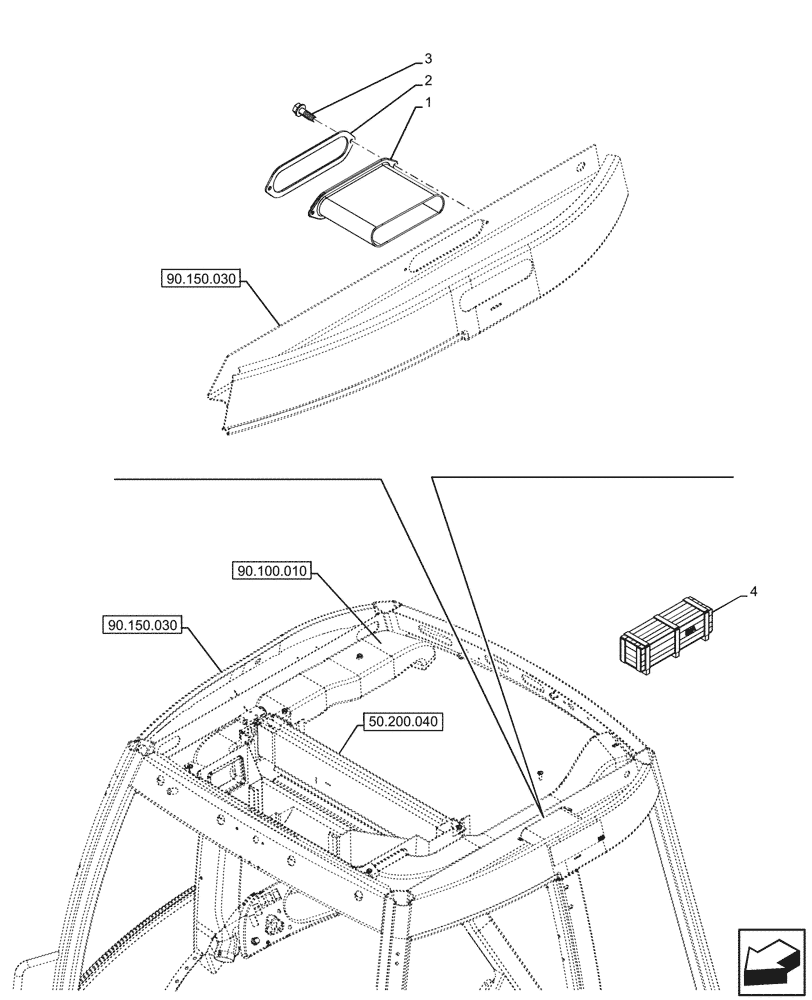

Схема запчастей Case 580N - (50.200.060) - VAR - 747853, 747855 - AIR CONDITIONING, AIR DUCT (50) - CAB CLIMATE CONTROL
90.150.030
4
1
2
3
90.100.010
50.200.040
90.150.030

Артикул

Название

Примечание

Количество

1

381111A2

SLEEVE

Fresh Air Intake

1шт.

2

381113A2

INSULATOR,3mm Thk

1шт.

3

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

2шт.

4

47955689

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1 - 3

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1 - 3

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 9
