(50.200.050) - VAR - 747853, 747855 - AIR CONDITIONING, DRAIN LINE

Запчасти Case 580N (50.200.050) - VAR - 747853, 747855 - AIR CONDITIONING, DRAIN LINE (50) - CAB CLIMATE CONTROL

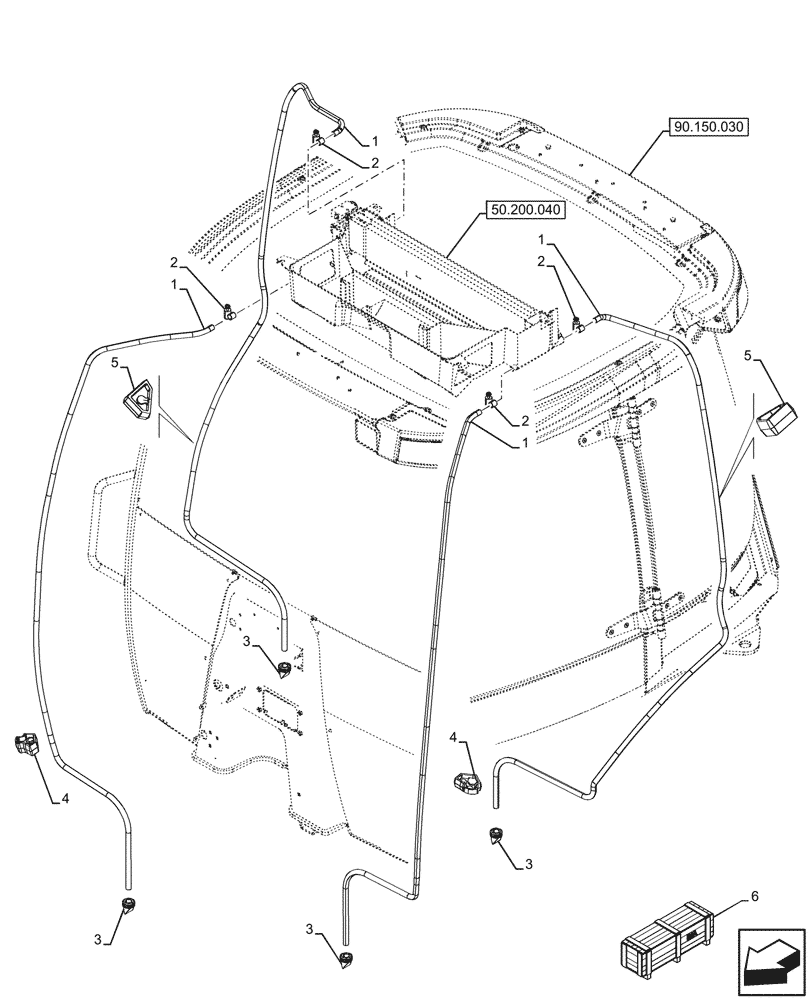

Схема запчастей Case 580N - (50.200.050) - VAR - 747853, 747855 - AIR CONDITIONING, DRAIN LINE (50) - CAB CLIMATE CONTROL
90.150.030
1
3
3
6
5
3
2
2
3
1
2
4
4
1
2
5
1
50.200.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87615800

TUBE,16.88 mm ID x 549.00 mm

Drain Condensate

4шт.

2

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

3

365789A1

DRAIN VALVE

Evaporator Check

4шт.

4

383794A2

PLUG

A Post

2шт.

5

383795A2

PLUG

Rear, Narrow Cab

2шт.

Valid for 580N, 580SN Models Only

1шт.

5

395470A1

PLUG

Rear, Wide Cab

2шт.

Valid for 580SN WT, 590SN Models Only

1шт.

6

47955689

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1 - 5

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1 - 5

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
