Запчасти Case 580N (50.200.030) - VAR - 747853, 747855 - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL

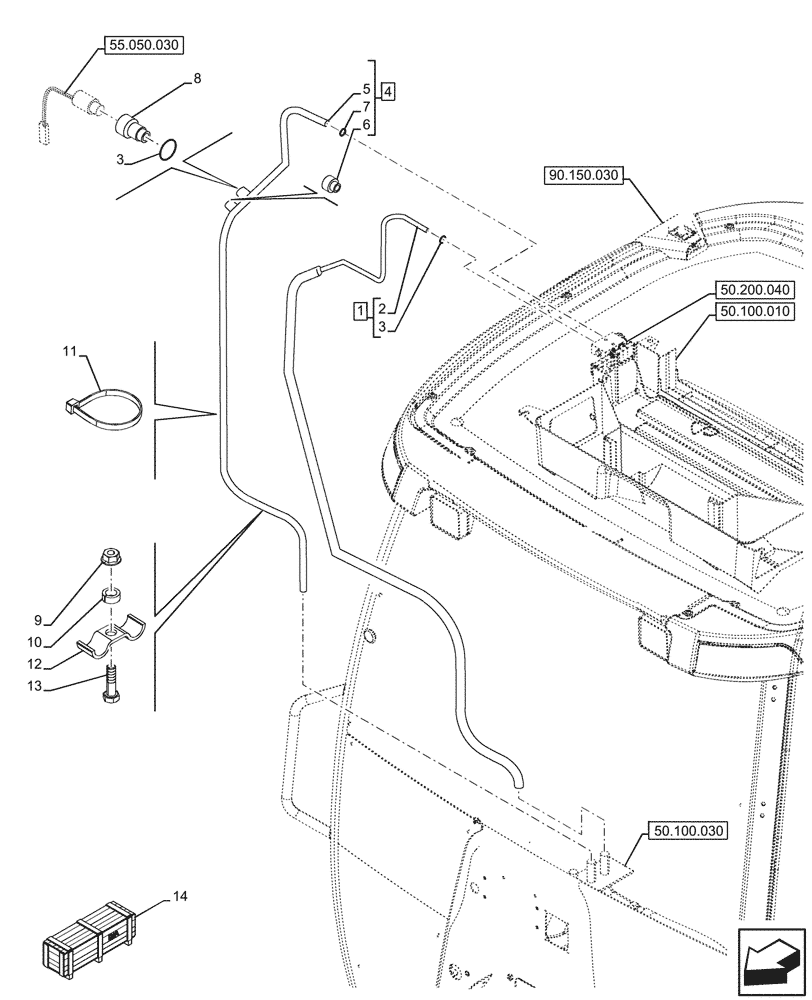

Схема запчастей Case 580N - (50.200.030) - VAR - 747853, 747855 - AIR CONDITIONING, LINES (50) - CAB CLIMATE CONTROL
90.150.030
12
5
2
9
1
14
3
3
7
4
8
11
10
13
6
55.050.030
50.100.030
50.200.040
50.100.010

Артикул

Название

Примечание

Количество

1

360256A1

A/C HOSE,0.375 Inch OD x 0.035 Inch Wall, Thermoplastic Core

ASSY, Press, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

4

360257A1

A/C HOSE,0.625 Inch OD x 0.049 Inch Wall, Thermoplastic Core

ASSY, Suction, Incl 3 (Qty 1), 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

122553A1

CAP

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

8

122081A1

FITTING,M10 x 1.25 x 26.43mm L

1шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

10

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

12

D143427

CLAMP

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

14

47955689

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1 - 13

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 1 - 13

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 19
