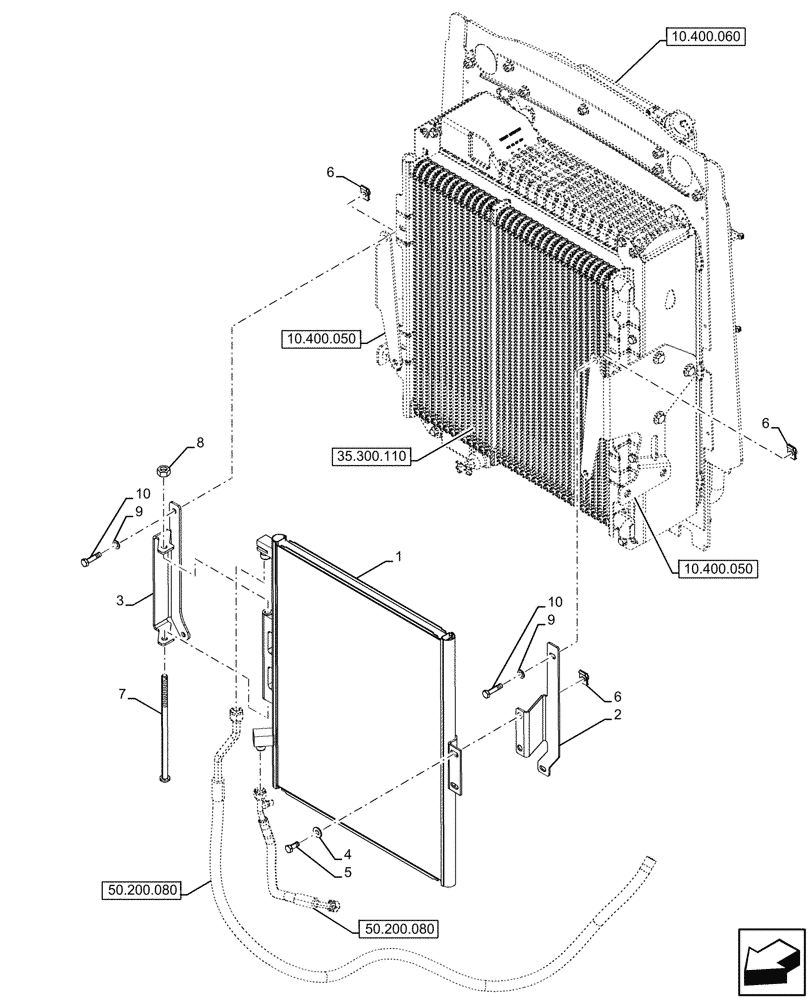

Запчасти Case 580N (50.200.010) - VAR - 747853, 747855 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

1

87546291

CONDENSER

Air Conditioning

1шт.

2

87606979

BRACKET

Condenser Support, LH

1шт.

3

87606977

BRACKET, PIVOT

Condenser Support, RH

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

833-40408

NUT,M8, U

6шт.

7

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.
