(50.100.020) - VAR - 747853, 747854, 747855 - CAB, HEATER, CORE, FILTER

Запчасти Case 580N (50.100.020) - VAR - 747853, 747854, 747855 - CAB, HEATER, CORE, FILTER (50) - CAB CLIMATE CONTROL

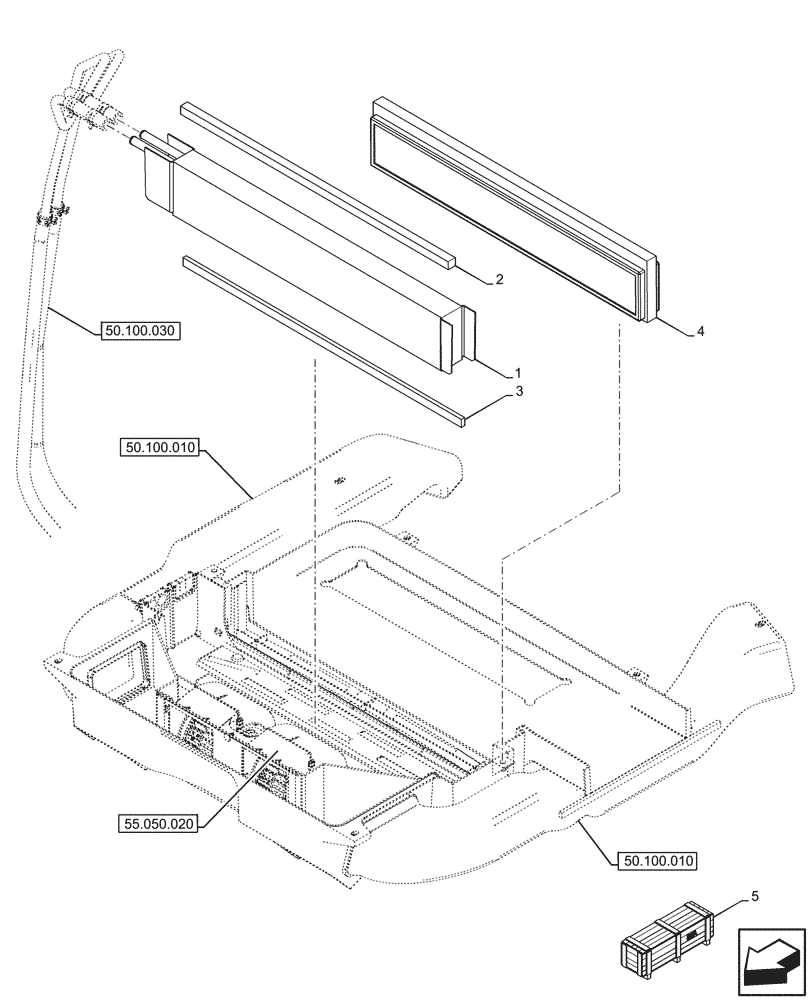

Схема запчастей Case 580N - (50.100.020) - VAR - 747853, 747854, 747855 - CAB, HEATER, CORE, FILTER (50) - CAB CLIMATE CONTROL
55.050.020
3
1
4
2
5
50.100.030
50.100.010
50.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

360262A2

CORE

Heater

1шт.

2

406287A1

SEALING STRIP,19mm W x 736mm L x 19mm Thk

1шт.

3

1987096C1

PLATE

1шт.

4

360260A2

CAB FILTER,A/C, 740mm L x 140.4mm W x 50mm Thk, Pleatloc

Fresh Air, Recirculation

1шт.

5

47955689

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 3

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 3

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
