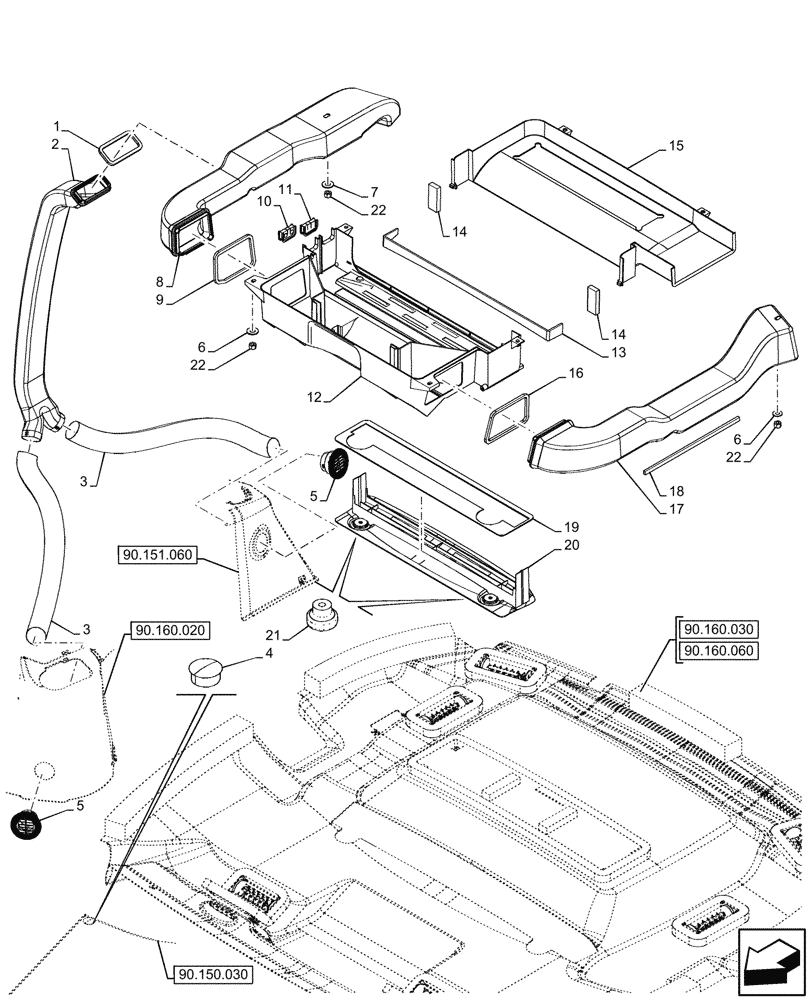

Запчасти Case 580N (50.100.010) - VAR - 747853, 747854, 747855 - CAB, HEATER, AIR DUCTS & HOSES (50) - CAB CLIMATE CONTROL

1

368807A1

RUBBER SEAL,8mm Thk

B Post

1шт.

2

360255A1

DUCT

B Post

1шт.

3

368818A1

AIR DUCT,63.5mm ID x 1015mm L

63.5mm ID x 1015mm L

2шт.

4

353-410

PLUG,Dome, .875" hole, Nylon

2шт.

5

47945983

LOUVER

Fixed, Round Black

2шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

360254A3

AIR DUCT

RH

1шт.

9

369249A1

RUBBER SEAL,183mm L

LH

1шт.

10

403225A1

SEAL,62mm L

1шт.

11

403193A1

SEAL,62mm L

1шт.

12

360251A3

HOUSING

ASSY

1шт.

13

403271A1

SEAL,882mm L

1шт.

14

377230A3

SEAL,94mm L

2шт.

15

360252A2

DUCT

Fresh Air Intake

1шт.

16

368805A1

FOAM INSULATION

1шт.

17

360253A3

AIR DUCT

LH

1шт.

18

368990A1

SEALING STRIP,13mm W x 432.9mm L x 8mm Thk

1шт.

19

382770A2

FOAM INSULATION,3mm Thk

1шт.

20

47939821

TRAY

Filter Support

1шт.

21

398738A1

KNOB

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.
