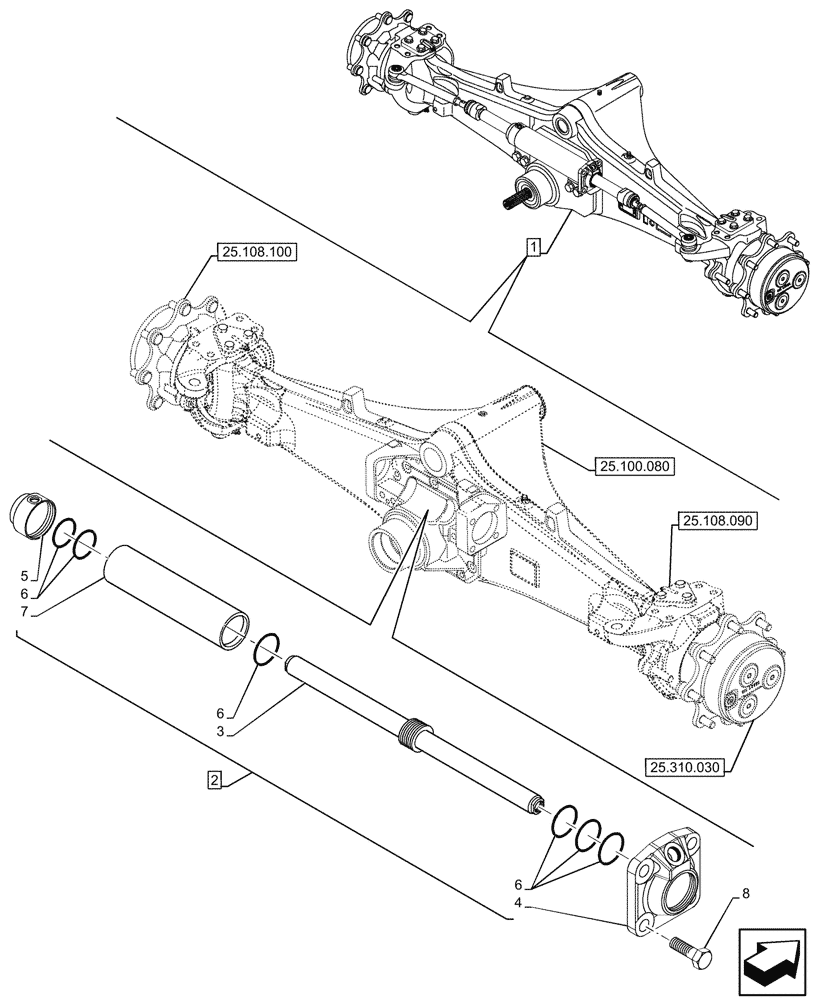

Запчасти Case 580N (41.216.060) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 8

1шт.

See also Front Axle Components in Figures 25.100.080, 25.100.090, 25.102.050, 25.102.060, 25.108.090, 25.108.100, 25.108.110, 25.310.030, 41.106.060

1шт.

2

84547074

STEERING CYLINDER,63mm Bore, 36mm Rod, 232mm Stroke

ASSY, Incl 3 - 7

1шт.

3

84556588

ROD,661mm L

Piston Steering Cylinder

1шт.

4

84556593

CAP

Cylinder End

1шт.

5

84556597

CAP

Cylinder End

1шт.

6

84556599

SEAL KIT

Steering Cylinder, 4WD

1шт.

7

NSS

NOT SOLD SEPARAT

Protective Sleeve, Incl in 2

1шт.

8

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

4шт.
