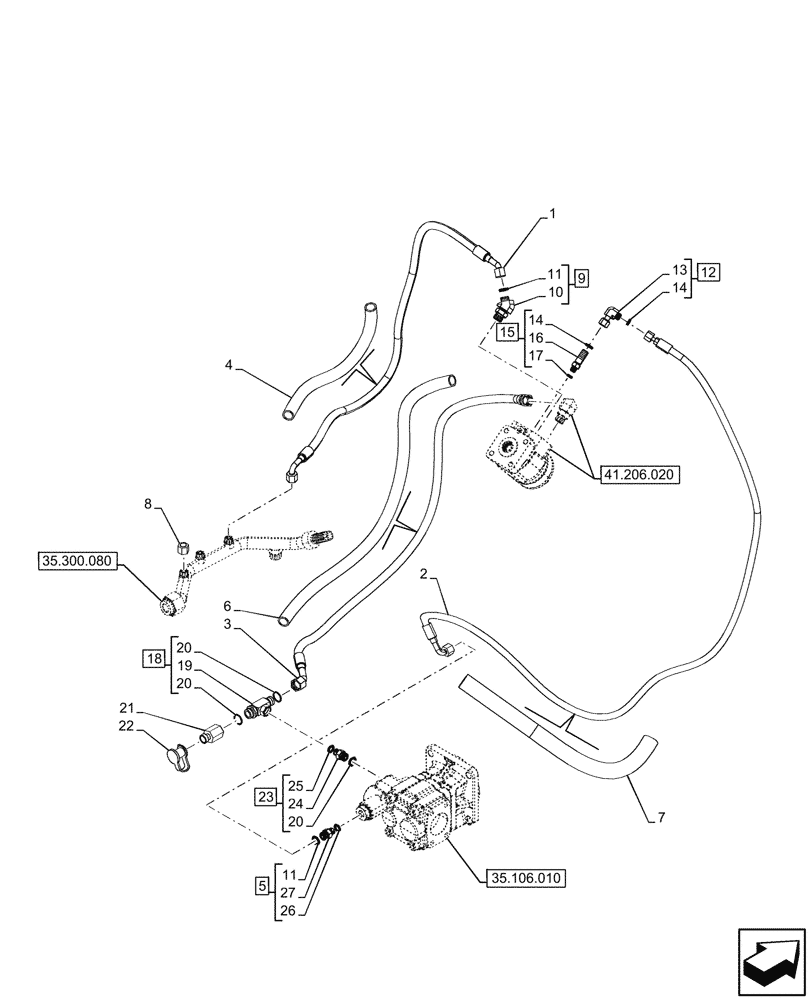

Запчасти Case 580N (41.200.020) - STEERING, OIL LINE (41) - STEERING

1

84279129

HOSE,25mm ID x 1280mm L

Steering Return, Steering Pump to Oil Filter Line

1шт.

2

84386222

HOSE,6.3mm ID x 1691mm L

Steering Pilot, Steering Pump to Hydraulic Pump

1шт.

3

47865748

HYDRAULIC HOSE,12.5mm ID x 1320mm L, SAE 100R16

Steering Pressure, Steering Pump to Hydraulic Pump

1шт.

4

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

1шт.

5

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 11 (Qty 1), 26, 27

1шт.

6

84327011

HOSE PROTECTION

1шт.

7

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

8

87331950

CAP ASSY.,Hex, 11/16"-16

1шт.

9

201-344

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 10, 11 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 9

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

12

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

ASSY, Incl 13, 14 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

15

87530057

FITTING

ASSY, Incl 14 (Qty 1), 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

84431325

TEE,13/16"-16 ORFS x 13/16"-16 Fem Sw Br

ASSY, Incl 19, 20 (Qty 2)

1шт.

19

NSS

NOT SOLD SEPARAT

Tee, Incl in 18

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

21

322529A1

COUPLING

1шт.

22

H434163

DUST CAP

1шт.

23

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

ASSY, Incl 20 (Qty 1), 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.
