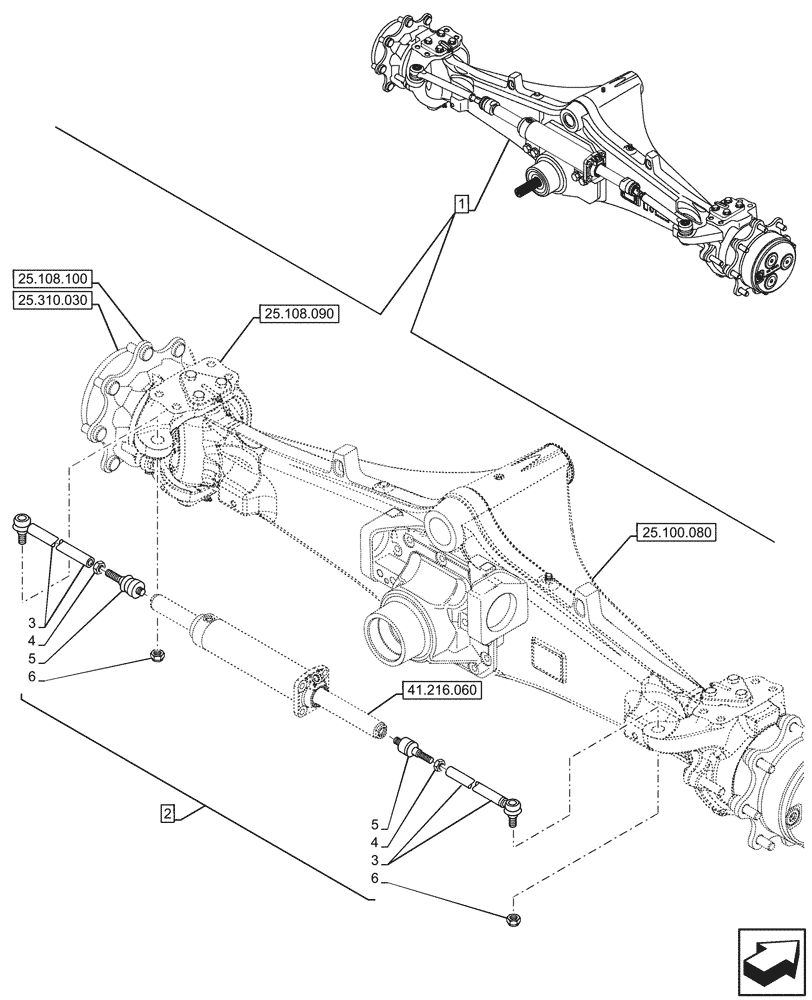

Запчасти Case 580N (41.106.060) - FRONT AXLE, STEERING TIE-ROD, 4WD (41) - STEERING

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 6

1шт.

See also Front Axle Components in Figures 25.100.080, 25.100.090, 25.102.050, 25.102.060, 25.108.090, 25.108.100, 25.108.110, 25.310.030, 41.216.060

1шт.

2

84547078

TIE-ROD,372.5mm L

ASSY, Incl 3 - 6

2шт.

3

84547079

BALL JOINT,372.5mm L

Tie Rod

2шт.

4

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

2шт.

5

87489981

BALL JOINT,399mm L

Tie Rod

2шт.

6

87489980

NUT,M18 x 1.5, Cl. 8

2шт.
