(41.106.010) - FRONT AXLE, STEERING TIE-ROD, 2WD

Запчасти Case 580N (41.106.010) - FRONT AXLE, STEERING TIE-ROD, 2WD (41) - STEERING

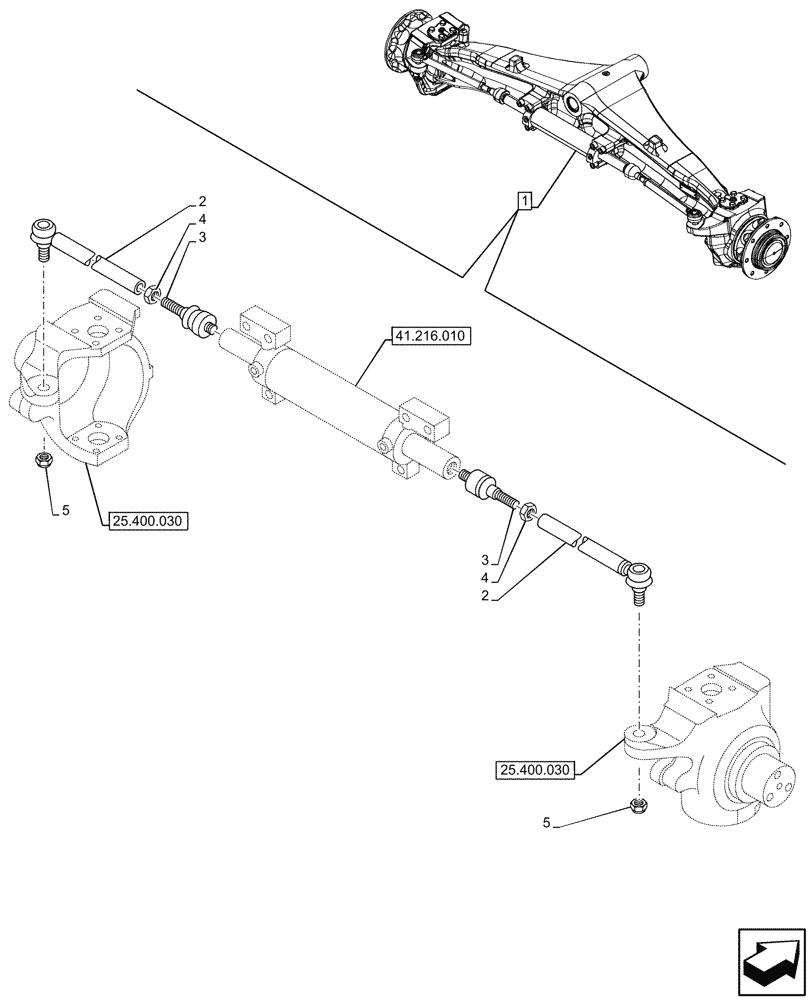

Схема запчастей Case 580N - (41.106.010) - FRONT AXLE, STEERING TIE-ROD, 2WD (41) - STEERING
25.400.030
5
1
2
3
5
2
4
3
4
41.216.010
25.400.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86990836

FRONT AXLE

ASSY, LV80, Incl 2 - 5

1шт.

See also Front Axle Components in Figures 25.400.020, 25.400.030, 25.400.040, 41.216.010

1шт.

2

401054A1

TIE-ROD,34mm OD x 260mm L

1шт.

3

112509A1

BALL JOINT

1шт.

4

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

5

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

Выбрано товаров: 6
