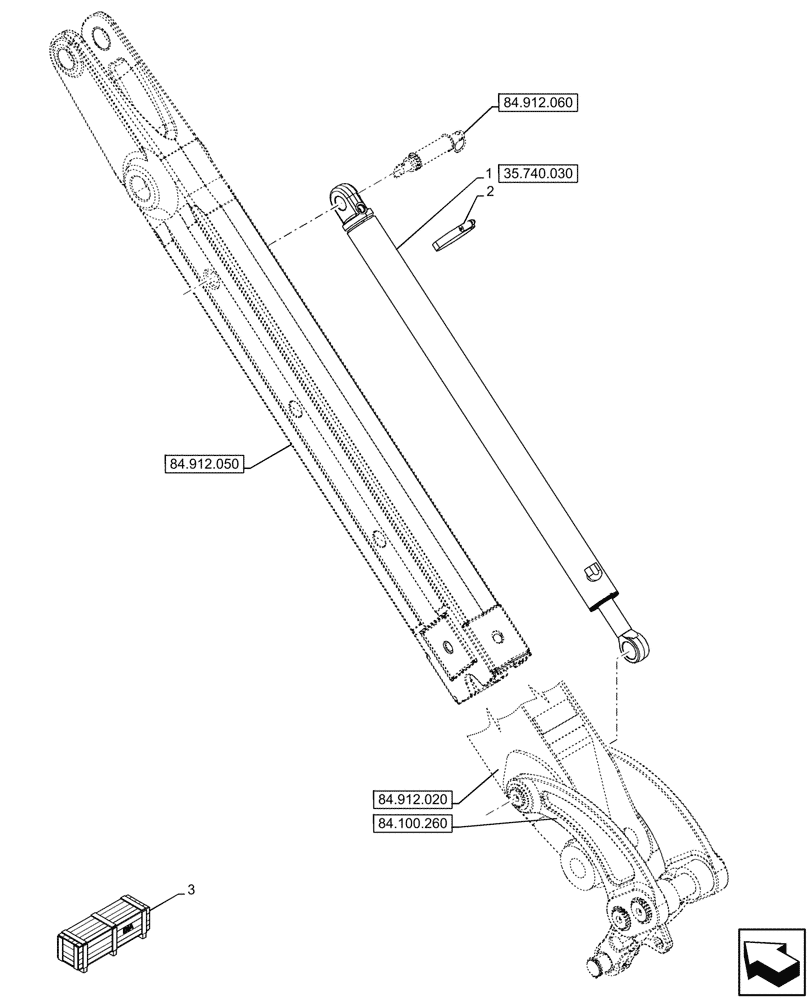

Запчасти Case 580N (35.740.010) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421678

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

ASSY, Grey

1шт.

2

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

3

47945904

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47945939

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
