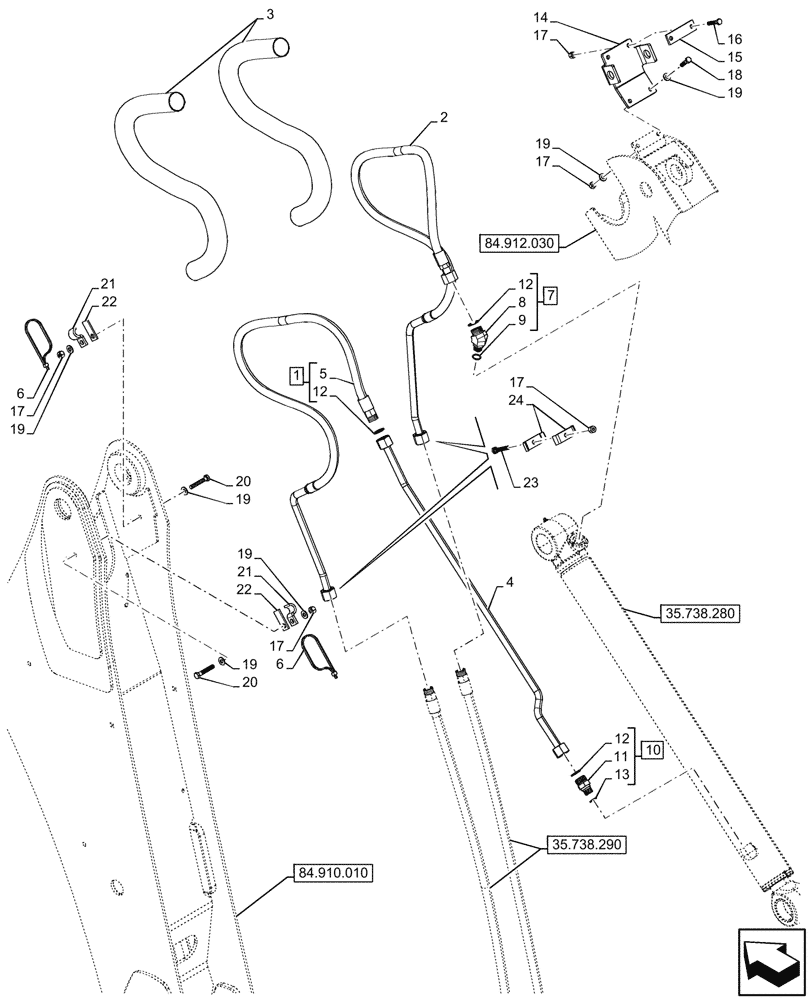

Запчасти Case 580N (35.738.300) - VAR - 423076 - COLD CLIMATE, BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47818089

HYDRAULIC HOSE,16mm ID, 1458mm L, SAE100R12

ASSY, Bucket Cylinder Rod, Incl 5, 12 (Qty 1)

1шт.

2

47818088

HYDRAULIC HOSE,16mm ID, 1479mm L, SAE100R12

Bucket Cylinder Head

1шт.

3

84373395

PROTECTIVE SLEEVE,72.4mm ID x 1105mm L

2шт.

4

84305540

TUBE

Bucket Cylinder Rod

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

7

201-352

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 8, 9, 12 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 7

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 11, 12 (Qty 1), 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

84359870

BRACKET

1шт.

15

101479A1

SUPPORT

1шт.

16

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

17

412141

NUT,M10 x 1.5, Cl 8

7шт.

18

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

20

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

84259030

SPACER

2шт.

23

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

24

D143846

CLAMP

2шт.
