(35.738.280) - VAR - 423076 - COLD CLIMATE, BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER

Запчасти Case 580N (35.738.280) - VAR - 423076 - COLD CLIMATE, BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

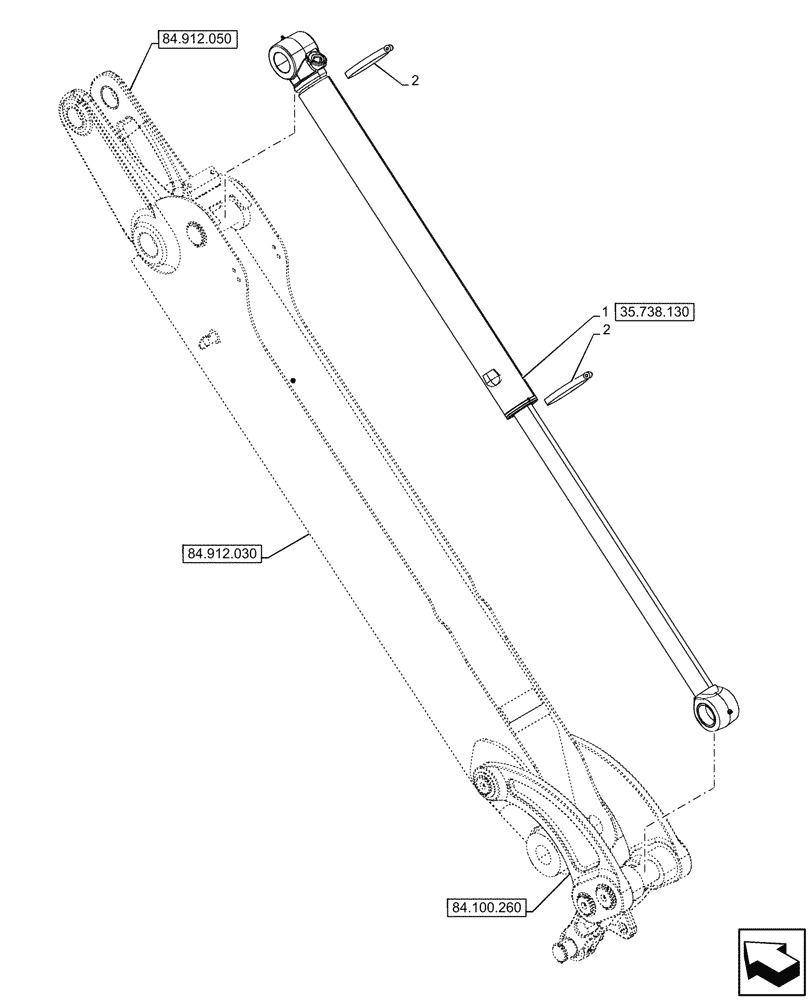

Схема запчастей Case 580N - (35.738.280) - VAR - 423076 - COLD CLIMATE, BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS
84.100.260
1
2
2
84.912.050
35.738.130
84.912.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421594

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 897.9mm Stroke

ASSY, Grey

1шт.

2

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.
