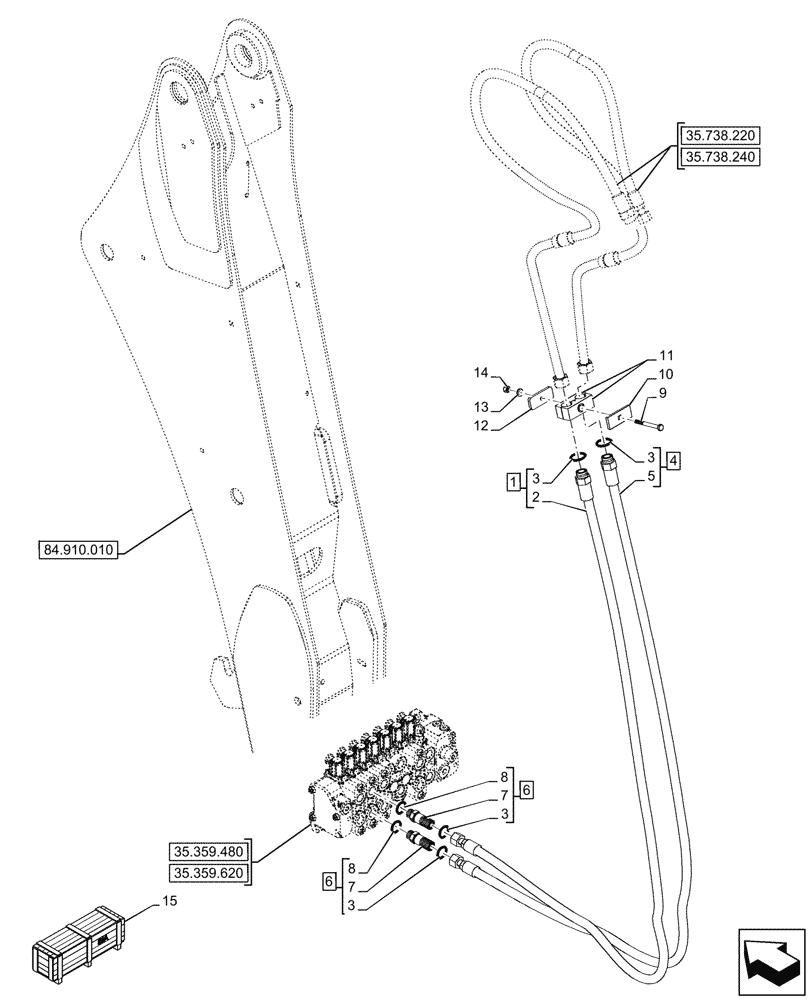

Запчасти Case 580N (35.738.210) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84281616

HOSE ASSY.,15.88mm ID x 2800mm L, SAE 100R16

Valve to Bucket, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

4

84257611

HYDRAULIC HOSE,15.88mm ID x 2755mm L, SAE 100R16

ASSY, Valve to Bucket, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

87393627

HYD CONNECTOR

ASSY, Incl 3 (Qty 2), 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

9

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

10

84283495

SECURING STRAP

2шт.

11

87000146

CLAMP

2шт.

12

84342644

PLATE

2шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

14

412250

NUT,M8 x 1.25, Cl 8

2шт.

15

47945904

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 5, 9 - 14

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

15

47945939

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1 - 5, 9 - 14

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
