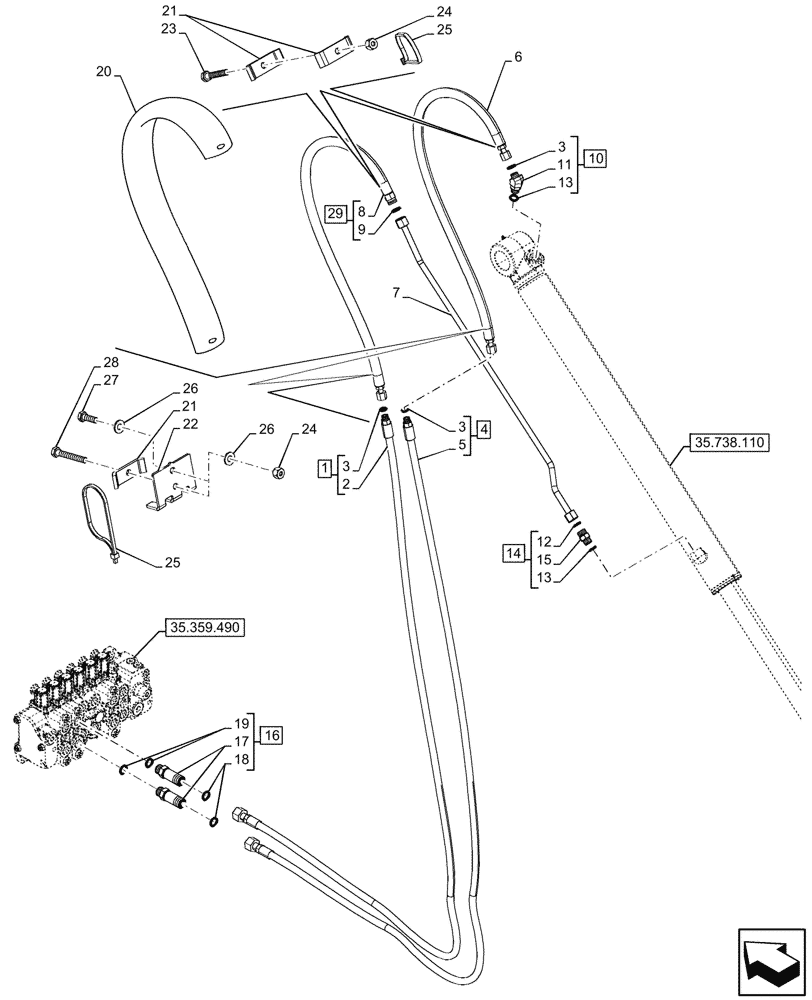

Запчасти Case 580N (35.738.120) - VAR - 423075 - BACKHOE BUCKET, STANDARD DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

84319555

HOSE,12.5mm ID x 2696mm L

ASSY, Valve to Bucket, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

4

84319552

HOSE,12.5mm ID x 2734mm L

ASSY, Valve to Bucket, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

84266069

HOSE ASSY.,12.5mm ID x 1241mm L

Bucket Head

1шт.

7

84319950

TUBE

Backhoe Bucket Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Incl in 29

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

201-377

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 3 (Qty 1), 11, 13 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 10

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

14

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 12, 13 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

87393627

HYD CONNECTOR

ASSY, Incl 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

2шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

20

84321337

SLEEVE,1245mm L

1шт.

21

D143846

CLAMP

3шт.

22

84408246

HOSE CLAMP

1шт.

23

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

24

412141

NUT,M10 x 1.5, Cl 8

3шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

26

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

27

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

28

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

29

84266070

HOSE ASSY.,12.5mm ID x 1248mm L

Bucket Rod

1шт.
